Advanced 3G terminal with flexible inputs configuration.
Worldwide 3G network coverage
Configurable DIN/AIN for flexible remote monitoring and control
CAN data reading from vehicles and specialized transport
Allows device to work without external power source
Negative input will allow easier installation of accessories
Impulse inputs for fuel flow meters data reading

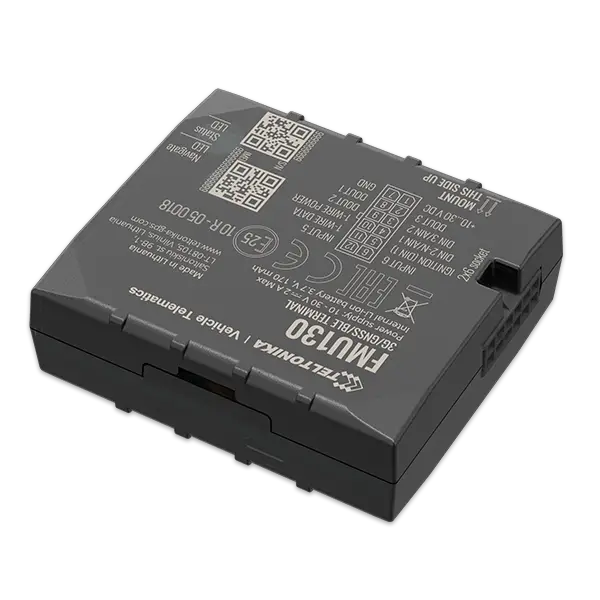

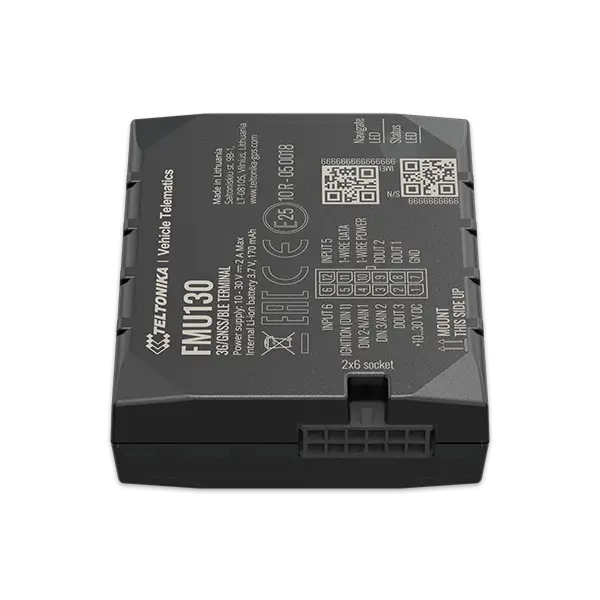

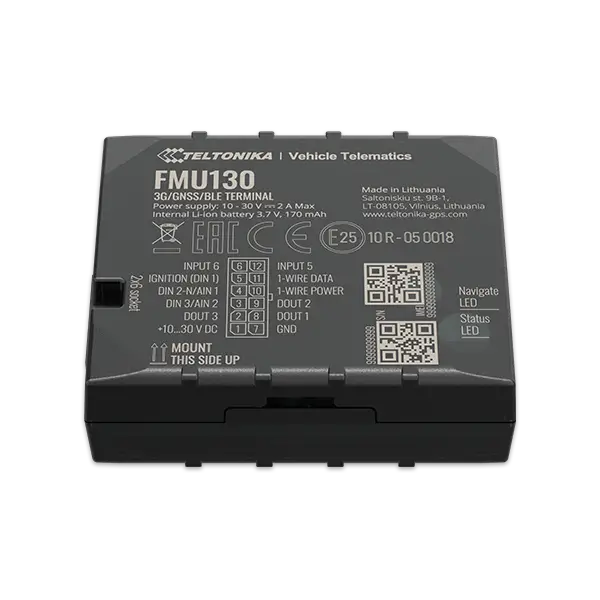

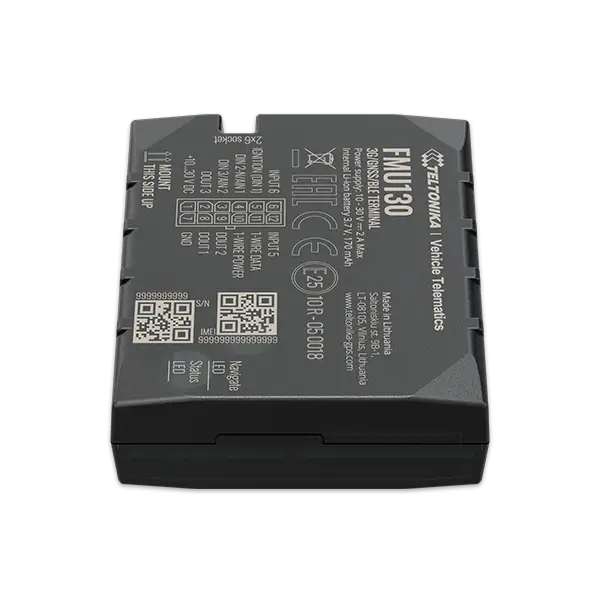

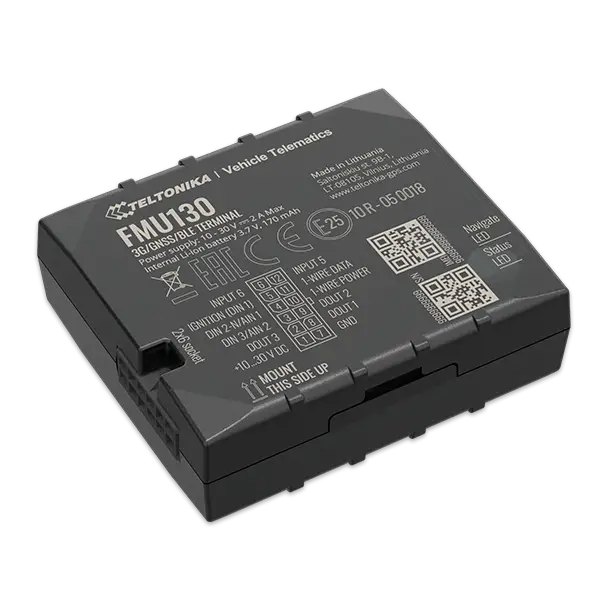

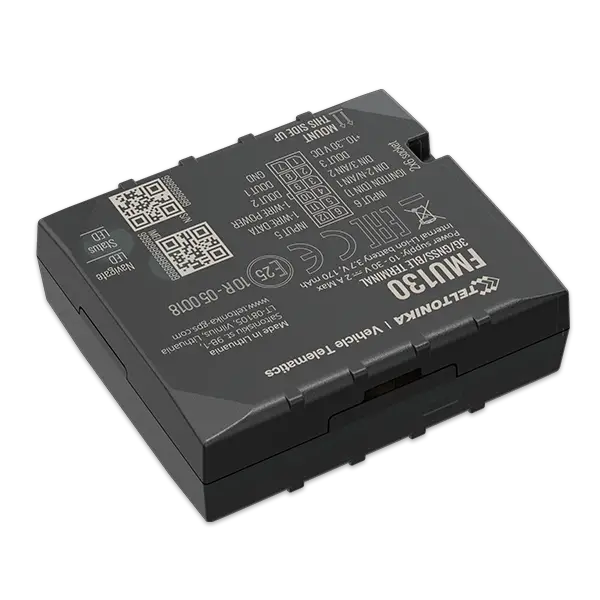

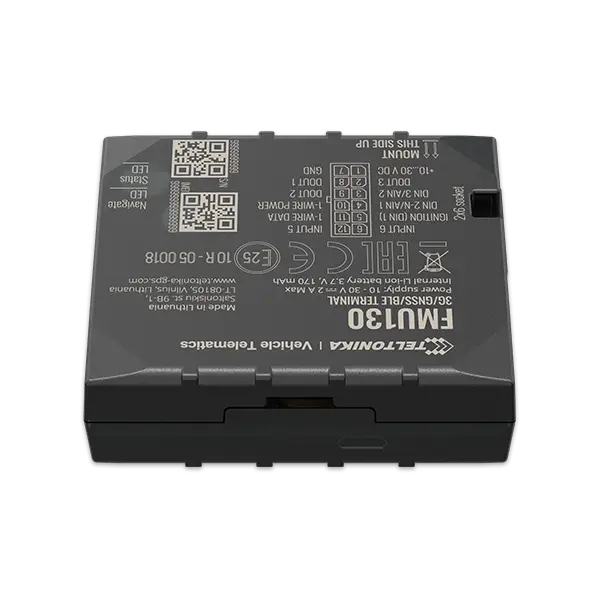

FMU130 is small and professional real-time tracking terminal with GNSS and 3G/GSM connectivity and backup battery. Device equipped with GNSS/Bluetooth and 3G modules, internal GNSS, 3G antennas, configurable digital, analogue inputs and digital outputs, negative input, impulse inputs.
It is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on.
MODULE | |
Name | Quectel UC15-A or Quectel UG96, Teltonika TM2500 |
Technology | 3G(UMTS/HSPA)/ 2G(GSM/GPRS)/ GNSS/ BLUETOOTH |
GNSS | |
GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS |
Protocol compatible | NMEA, GGA, GGL, GSA, GSV, RMC, VTG |
Receiver | Tracking: 33/99 acquisition channels |
Tracking sensitivity | -165 dBM |
Accuracy | < 3 m |
Hot start | < 1 s |
Warm start | < 25 s |
Cold start | < 35 s |
CELLULAR | |
Technology | UMTS/HSPA |
2G bands | UC15-A: B5/B8/B3/B2 UG96: B5/B8/B3/B2 |
3G bands | UC15-A: B5/B2 UG96: B6/B5/B8/B2/B1 |
Data transfer | UC15:HSDPA: Max. 3.6Mbps (DL) UMTS: Max. 384Kbps (DL)/Max.384Kbps (UL) GPRS: Max. 85.6Kbps (DL)/Max. 85.6Kbps (UL) UG96:HSUPA: Max. 5.76Mbps UMTS: Max. 384Kbps (DL)/Max.384Kbps (UL) GPRS: Max. 107Kbps (DL)/Max.85.6Kbps (UL) |
Data support | SMS (text/data) |
POWER | |
Input voltage range | 10 - 30 V DC with overvoltage protection |
Internal Back-up battery | 170 mAh Li-Ion, 3.7 V battery (0.63 Wh) |
BLUETOOTH | |
Specification | 4.0 + LE |
Supported peripherals | Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
PHYSICAL SPECIFICATION | |
Dimensions | 65 x 56,6 x 20,6 mm (L x W x H) |
Weight | 55 g |
OPERATING ENVIRONMENT | |
Operating temperature (without battery) | -40 °C to +85 °C |
Storage temperature (without battery) | -40 °C to +85 °C |
Operating humidity | 5% to 95% non-condensing |
Ingress Protection Rating | IP41 |
Battery charge temperature | 0 °C to +45 °C |
Battery discharge temperature | -20 °C to +60 °C |
Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |

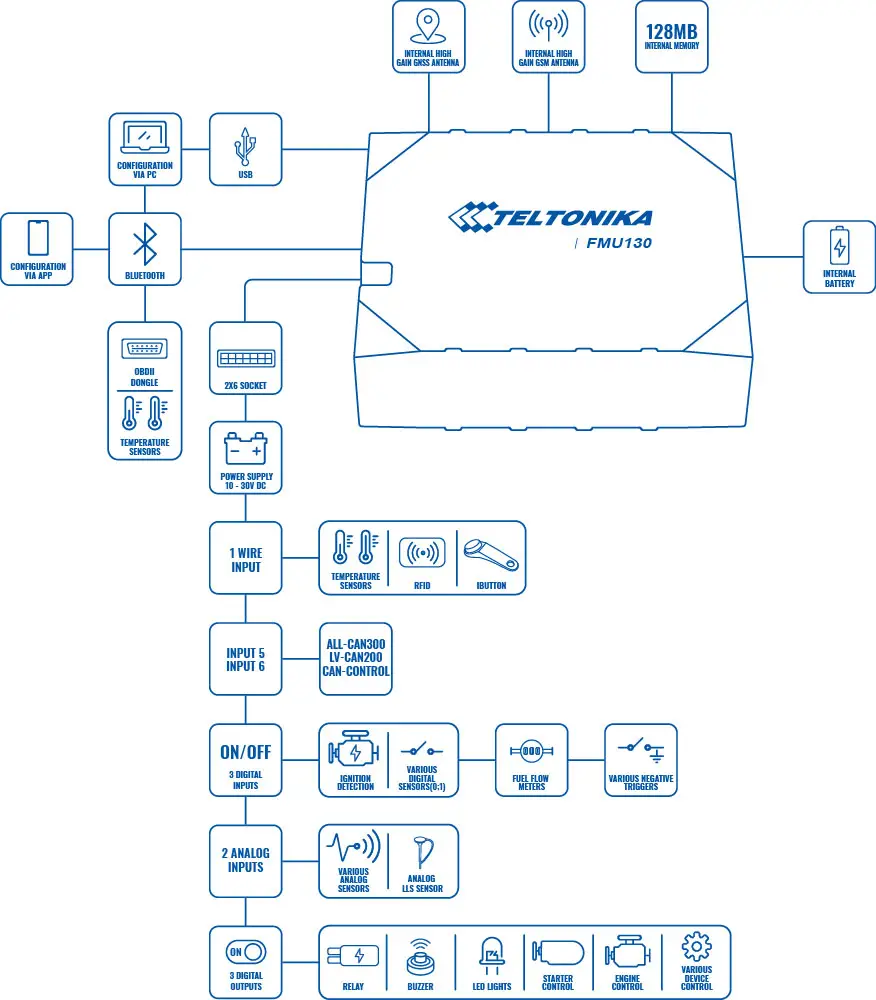

INTERFACE | |
Digital Inputs | 3 |
Negative Inputs | 1 (Digital Input 2) |
Impulse Inputs | 2 (Digital Input 1, Digital Input 2) |
Digital Outputs | 3 |
Analog Inputs | 2 |
CAN Adapter inputs | 1 |
1-Wire | 1 |
GNSS antenna | Internal High Gain |
Cellular antenna | Internal High Gain |
USB | 2.0 Micro-USB |
LED indication | 2 status LED lights |
SIM | Micro-SIM + eSIM |
Memory | 128MB internal flash memory |
FEATURES | |
Sensors | Accelerometer |
Scenarios | Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
SMS | Configuration, Events, DOUT control, Debug |
GPRS commands | Configuration, DOUT control, Debug |
Time Synchronization | GNSS, NITZ, NTP |
Fuel monitoring | LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle |
Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle) |
