FMB002


Ultra-small OBDII Plug and Play device with GNSS, GSM, BLE 4.0 connectivity and CAN bus data reading capability!






Allows reading CAN bus data from vehicle ECU



Our smallest GNSS tracker for rich connected car applications



Bluetooth for external devices and Low Energy sensors



Crash detection functionality working according accelerometer data




1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8







DESCRIPTION & FEATURES




FMB002 is an ultra-small OBDII plug and play device with GNSS, GSM, BLE 4.0 connectivity and CAN bus data reading capability. It is a perfect tracker for a wide range of use cases – including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and more.

The main feature of FMB002 is OBDII standard data reading from a vehicle’s on-board computer. Combined with an effortless and low-cost integration, it is an easy and powerful solution. The device supports various Bluetooth Low energy sensors, beacons, hands-free headsets, firmware and configuration updates via Bluetooth.

Last but not least – our device is only 50% of a size of its predecessor FMB001. Much smaller, yet with an enriched set of features, FMB002 is an obvious choice for your OBD application!



Features

MODULE
NameTeltonika TM2500
TechnologyGSM/ GPRS/ GNSS/ BLUETOOTH
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver33 channel
Tracking sensitivity-165 dBM
Accuracy< 3 m
Hot start< 1 s
Warm start< 25 s
Cold start< 35 s
CELLULAR
TechnologyGSM
2G bandsQuad-band 850 / 900 / 1800 / 1900 MHz
Data transferGPRS Multi-Slot Class 12(up to 240 kbps)
Data supportSMS (text/data)
POWER
Supply voltage range10 - 30 V DC with overvoltage protection
Back-up battery3.7 V 45 mAh
Power consumptionAt 12V < 5 mA (Ultra Deep Sleep)
At 12V < 7 mA (Deep Sleep)
At 12V < 7 mA (Online Sleep)
At 12V < 8 mA (GPS Sleep)
At 12V < 28 mA (nominal)
BLUETOOTH
Specification4.0 + LE
Supported peripheralsTemperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support
OBD INTERFACE
DataK-Line, CAN bus data
Data readingUp to 32 vehicle onboard parameters, supported OBD protocols:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)

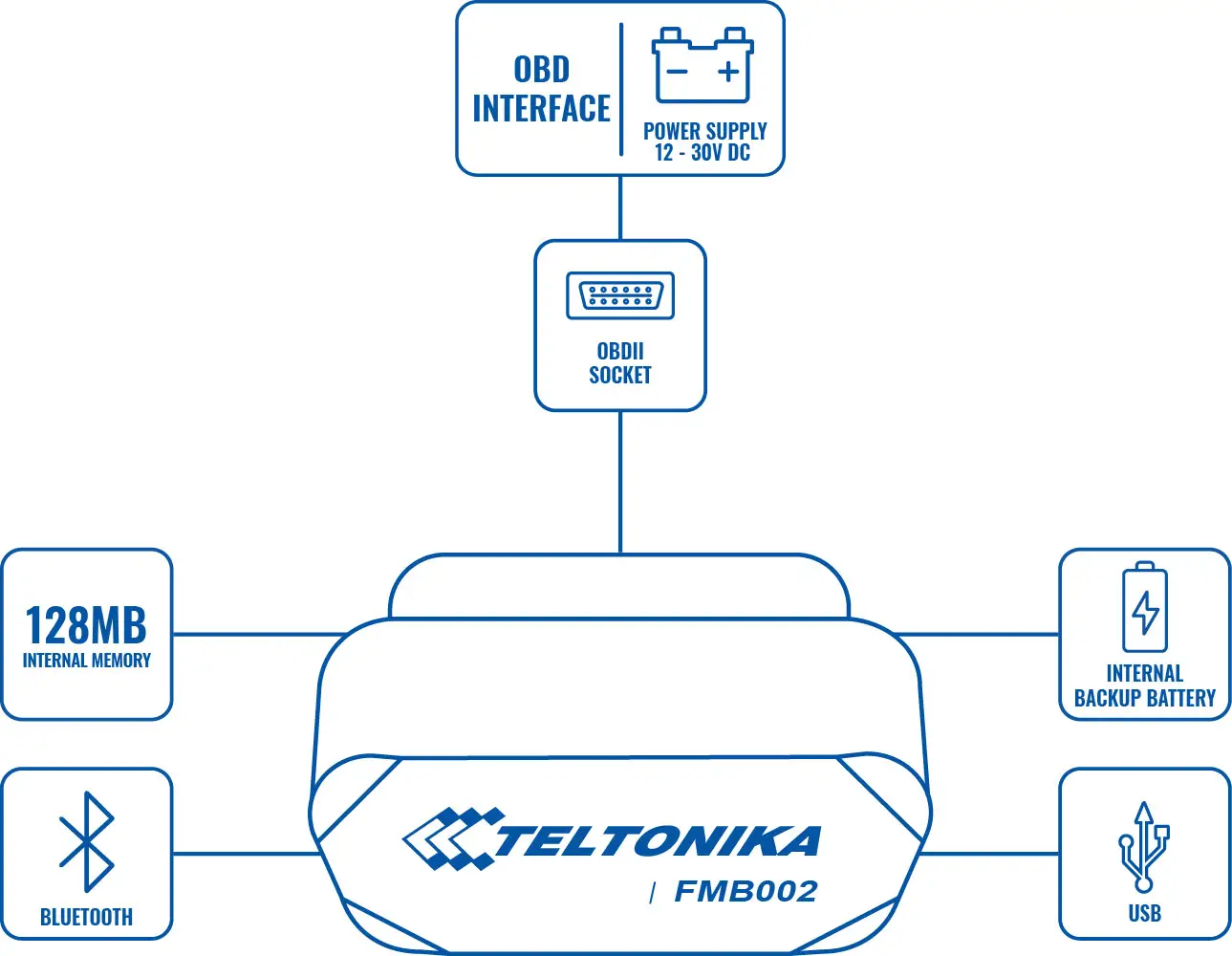

INTERFACE
ConnectionOBDII Socket
GNSS antennaInternal High Gain
Cellular antennaInternal High Gain
USB2.0 Micro-USB
LED indication2 status LED lights
SIMNano-SIM
Memory128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions52.6 x 29.1 x 26 mm (L x W x H)
OPERATING ENVIRONMENT
Operating temperature (without battery)-40 °C to +85 °C
Storage temperature (without battery)-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP41
Battery charge temperature+10 °C to +45 °C
Battery discharge temperature-20 °C to +60 °C
Battery storage temperature-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
FEATURES
SensorsAccelerometer
ScenariosGreen Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMSConfiguration, Events, Debug
GPRS commandsConfiguration, Debug
Time SynchronizationGPS, NITZ, NTP
Fuel monitoringOBD II
Ignition detectionAccelerometer, External Power Voltage, Engine RPM
