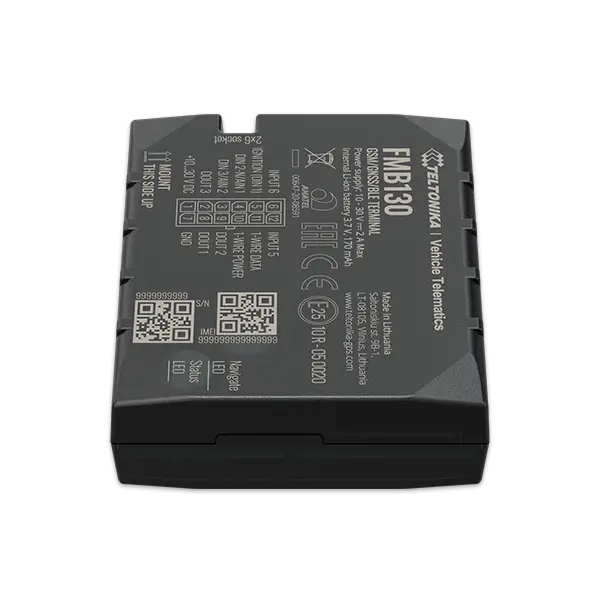

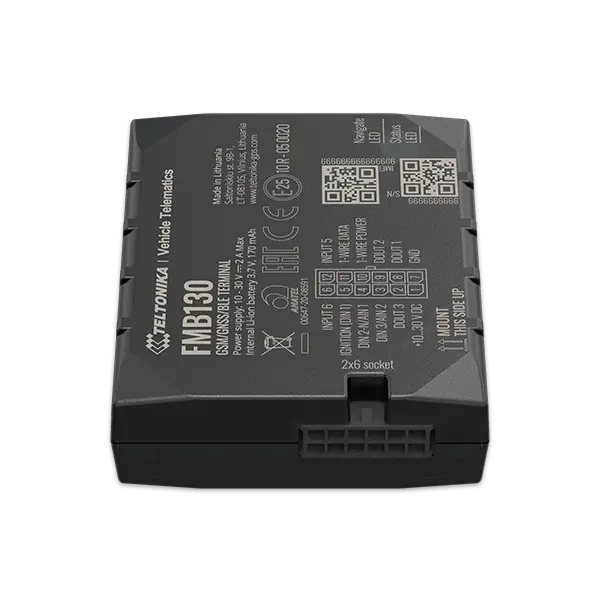

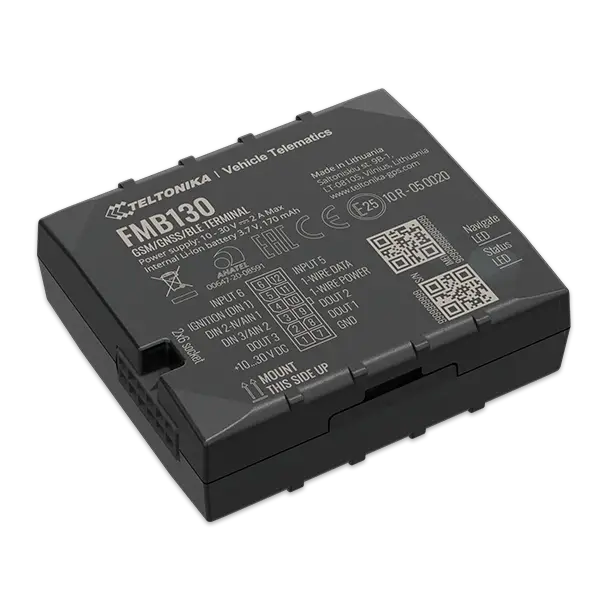

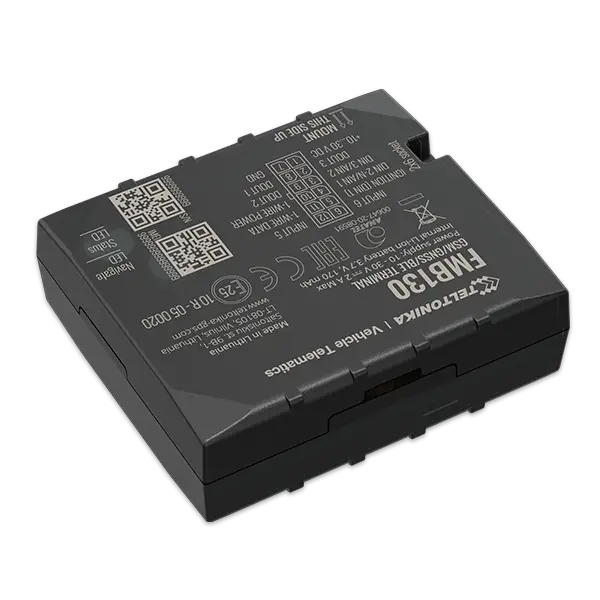

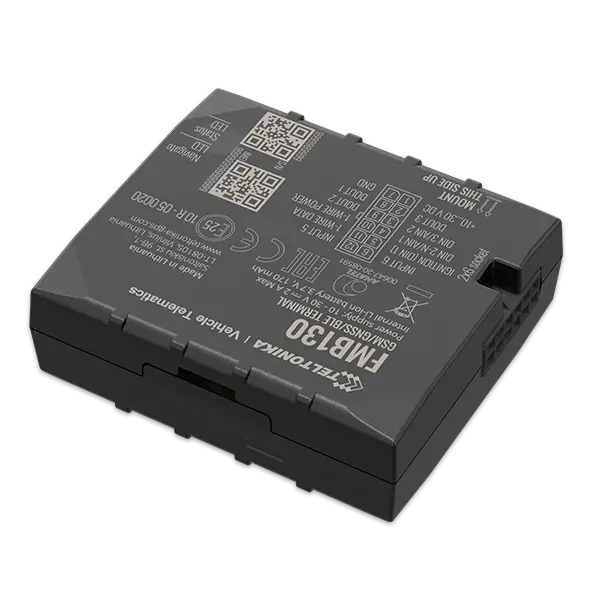

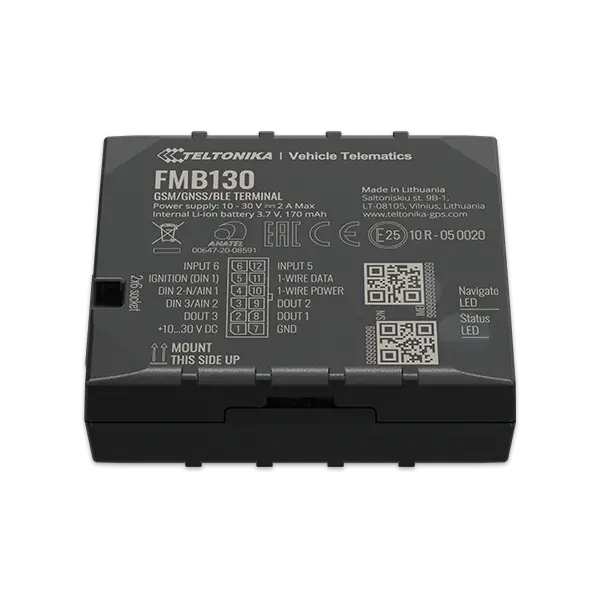

FMB130


GPRS/GNSS tracker with flexible inputs configuration





Configurable DIN/AIN for flexible remote monitoring and control


1-Wire® interface to monitor temperature data and RFID/iButton tags


Bluetooth for external devices and Low Energy sensors


Allows device to work without external power source


Negative input will allow easier installation of accessories


Impulse inputs for fuel flow meters data reading




1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8







DESCRIPTION & FEATURES




FMB130 is ADVANCED tracker with internal GNSS, GSM antennas, configurable digital/analogue inputs/negative input/impulse inputs, three DOUT outputs, Bluetooth connectivity and backup battery.

Teltonika keeps its promise to make IoT Easy. FMB130 device is the first device with negative input possibility. It allows you to save your precious integration time while connecting accessories like vehicle door sensor, alarm button, seatbelt detection and similar sensors or accessories.

Additionally, we have integrated possibility to enable Impulse Input for fuel flow meter data reading. Impulse based fuel usage control is much more accurate than different kind of fuel level sensors and enables possibility to be precise if needed. It is perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment.

We have added one additional Digital Output. Now it is 3 of them in total! It is not surprising that DOUT is the most popular connection type on FMB1 family devices. It`s allows you to use simultaneously 3 different DOUT scenarios like: immobilizer, buzzer, alarm lights, door lock and others.

New FMB130 is the first advanced vehicle tracking system with programmable DIN/AIN/Negative/Impulse input. First input has following choices: Digital, Analog, Negative, Impulse. Second input may be Digital or Analog.

With these new features you can have one tracking system for much wider range of use cases.



Features

MODULE
NameTeltonika TM2500
TechnologyGSM/ GPRS/ GNSS/ BLUETOOTH
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
ReceiverTracking: 33
Tracking sensitivity-165 dBM
Accuracy< 3 m
Hot start< 1 s
Warm start< 25 s
Cold start< 35 s
CELLULAR
TechnologyGSM
2G bandsQuad-band 850 / 900 / 1800 / 1900 MHz
Data transferGPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data supportSMS (text/data)
POWER
Input voltage range10 - 30 V DC with overvoltage protection
Internal Back-up battery170 mAh Li-Ion battery 3.7 V (0.63 Wh)
BLUETOOTH
Specification4.0 + LE
Supported peripheralsTemperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions65 x 56,6 x 20,6 mm (L x W x H)
Weight55 g
OPERATING ENVIRONMENT
Operating temperature (without battery)-40 °C to +85 °C
Storage temperature (without battery)-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP41
Battery charge temperature-0 °C to +45 °C
Battery discharge temperature-20 °C to +60 °C
Battery storage temperature-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months

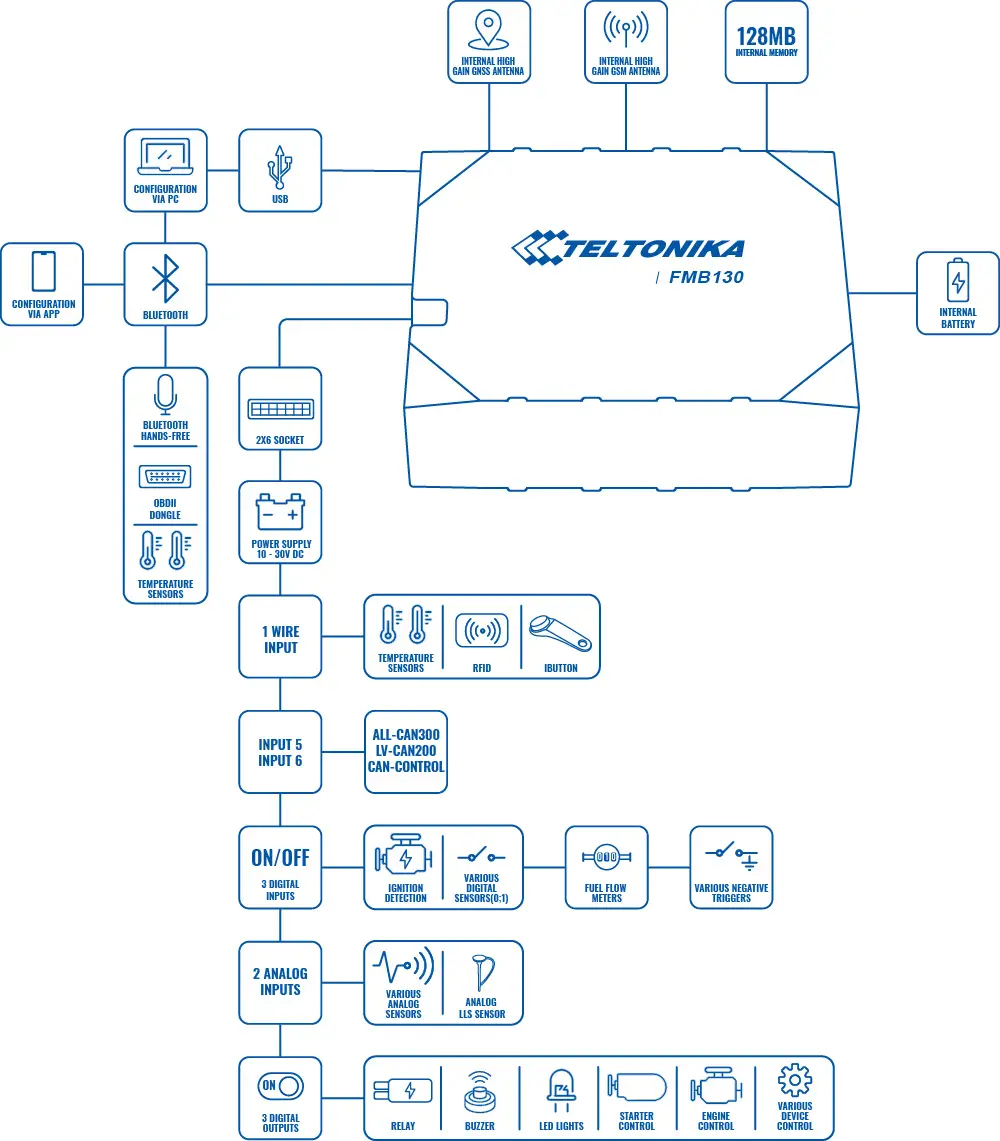

INTERFACE
Digital Inputs3
Negative Inputs1 (Digital Input 2)
Impulse Inputs2 (Digital Input 1, Digital Input 2)
Digital Outputs3
Analog Inputs2
CAN Adapter inputs1
1-Wire1
GNSS antennaInternal High Gain
Cellular antennaInternal High Gain
USB2.0 Micro-USB
LED indication2 status LED lights
SIMMicro-SIM + eSIM
Memory128MB internal flash memory
FEATURES
SensorsAccelerometer
ScenariosGreen Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMSConfiguration, Events, DOUT control, Debug
GPRS commandsConfiguration, DOUT control, Debug
Time SynchronizationGNSS, NITZ, NTP
Fuel monitoringLLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detectionDigital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
