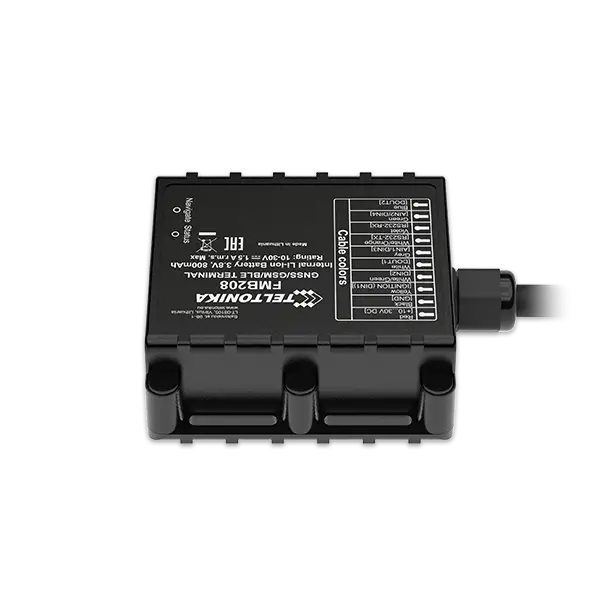

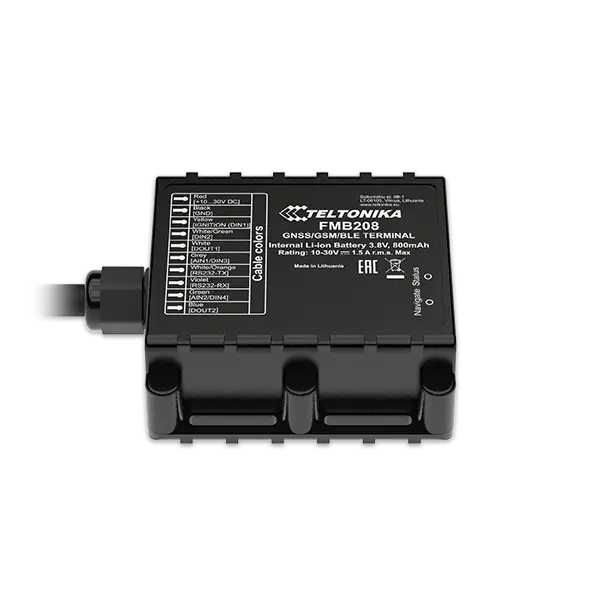

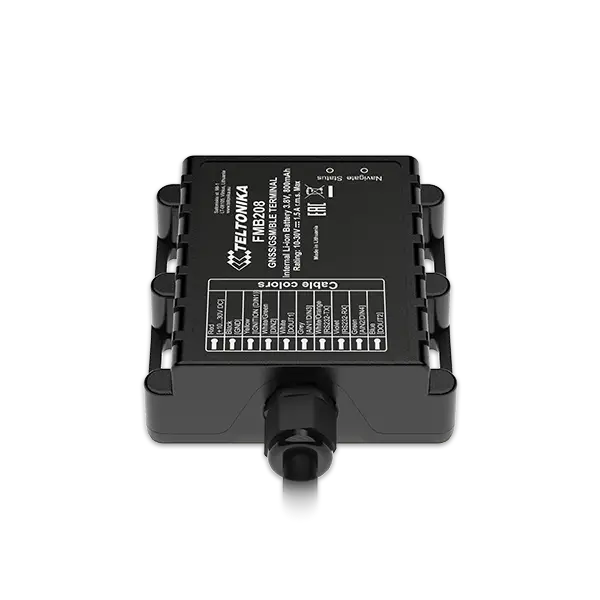

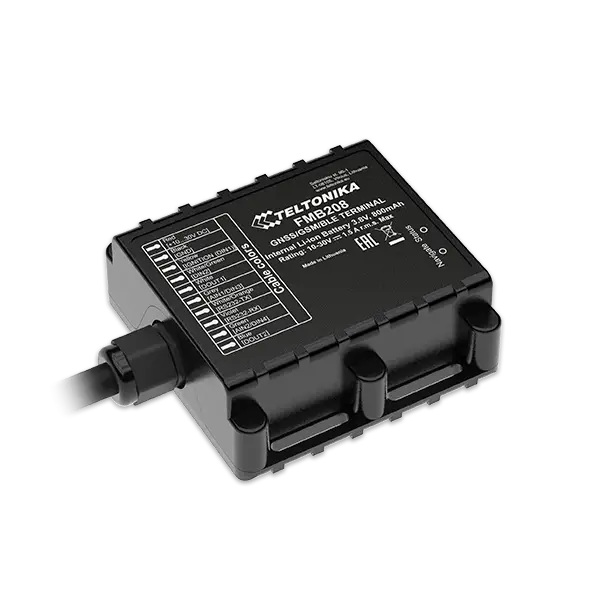

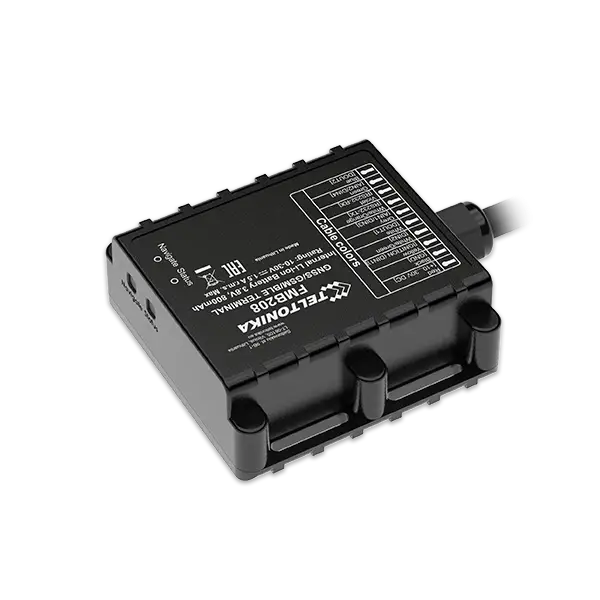

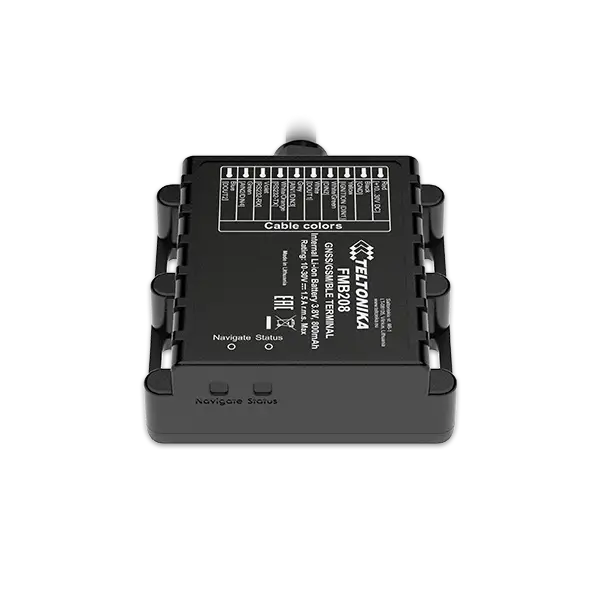

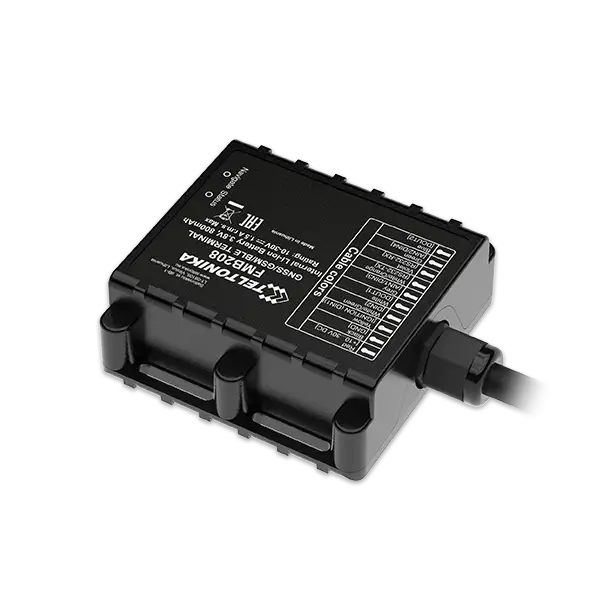

FMB208


FMB208 is a SPECIAL waterproof tracker with Bluetooth connectivity and integrated backup battery.
Device was designed to meet Indian government regulation AIS 140





Allows device to work without external power source


Digital Input/Output for remote monitoring and control


Bluetooth for external devices and Low Energy sensors


RS232 interface for external data reading


External voltage range


Certified AIS40 with IRNSS




1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8







DESCRIPTION & FEATURES




FMB208 is a waterproof tracker with gyroscope and IRNSS support for Indian compliance market. Teltonika designed a SPECIAL tracker to fulfil the requirements of AIS140 regulation and deliver additional value for GPS telematics solution providers by high-end features. FMB208 is ARAI certified AIS140 tracker with IRNSS and GPS, meeting requirements of GAGAN support, 2 servers functionality, internal battery, accelerometer and gyroscope, Embedded SIM, tamper-proof (IP67 rating) and powerful WEB FOTA to fulfil firmware updates requirement. Moreover, Teltonika added rich features on top to deliver more value for GPS telematics service providers:

3rd server support; BT functionality enables firmware and configuration update, smartphone connection, OBD dongle support; BLE sensors and beacons – expands business opportunities dramatically; Security features: jamming detection, unplug and towing detection; Crash features – crash event and reconstruction of crash.

Device can be delivered ready to go (loaded with eSIM, registered in authorized system) for compliance market when ordering from Teltonika India team.

FMB208 is a perfect choice to meet compliance requirements and deliver more value for the market.



Features

MODULE
NameTeltonika TM2500
TechnologyGSM/ GPRS/ BLUETOOTH
GNSS
NameQuectel L89
GNSSGPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS
Receiver33 channel
Tracking sensitivity-162 dBM
Accuracy< 3 m
Hot start< 1.5 s
Warm start< 25 s
Cold start< 32 s
CELLULAR
TechnologyGSM
2G bandsQuad-band 850 / 900 / 1800 / 1900 MHz
Data transferGPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data supportSMS (text/data)
POWER
Input voltage range10 - 30 V DC with overvoltage protection
Back-up battery800 mAh Li-Ion battery (0.49 Wh)
Power consumptionAt 12V < 5,61 mA (Ultra Sleep)
At 12V < 6,59 mA (Deep Sleep)
At 12V < 6,91 mA (Online Sleep)
At 12V < 8,78 mA (GPS Sleep)
At 12V < 53,89 mA (nominal)
BLUETOOTH
Specification4.0 + LE
Supported peripheralsTemperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner

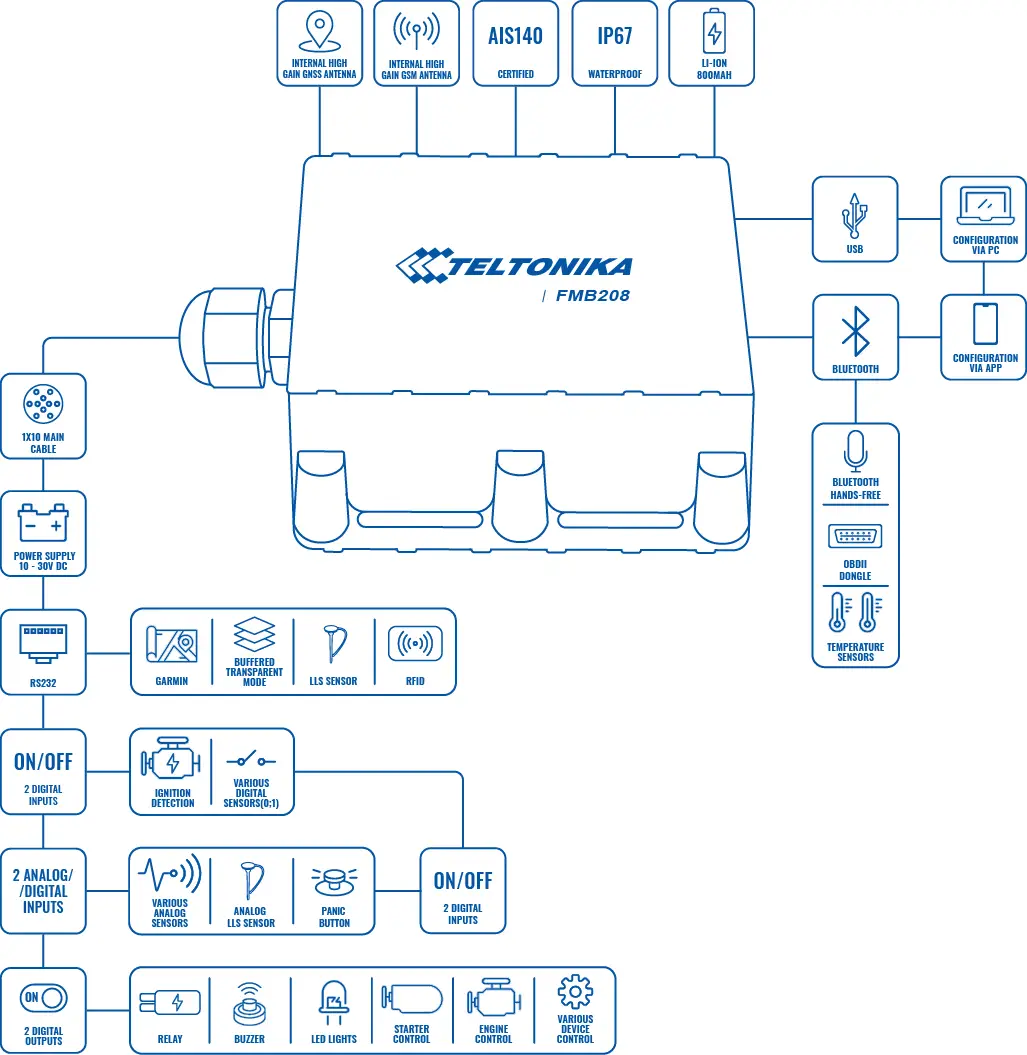

INTERFACE
Digital Inputs2
Digital Outputs2
Analog Inputs/Digital inputs2
RS2321
GNSS antennaInternal High Gain
Cellular antennaInternal High Gain
USB2.0 Micro-USB
LED indication2 status LED lights
SIMeSIM
Memory128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions72,5 x 73 x 27,3 mm (L x W x H)
Weight205 g
OPERATING ENVIRONMENT
Operating temperature (without battery)-40 °C to +85 °C
Storage temperature (without battery)-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP67
FEATURES
SensorsAccelerometer
ScenariosGreen Driving, Over Speeding detection, Jamming detection, DOUT Control Via Call, GNSS Fuel Counter, Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMSConfiguration, Events, DOUT control, Debug
GPRS commandsConfiguration, DOUT control, Debug
Time SynchronizationGPS, NITZ, NTP
Fuel monitoringLLS (Analog), Digital LLS (RS232), OBDII dongle
Ignition detectionDigital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
RS232 ModesLog Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary
