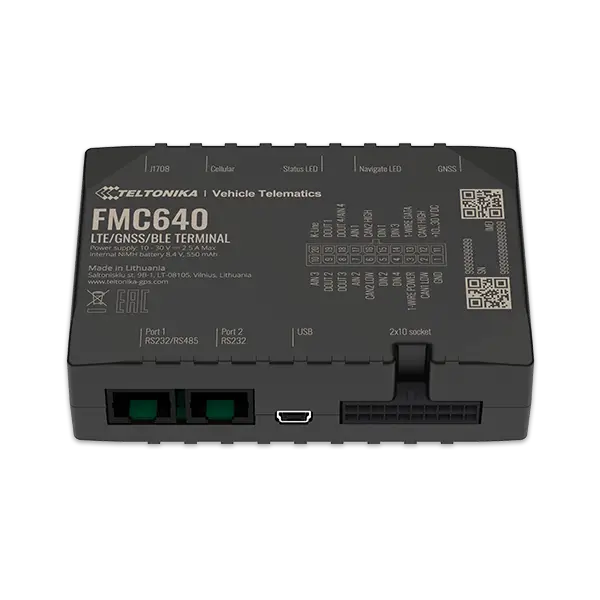

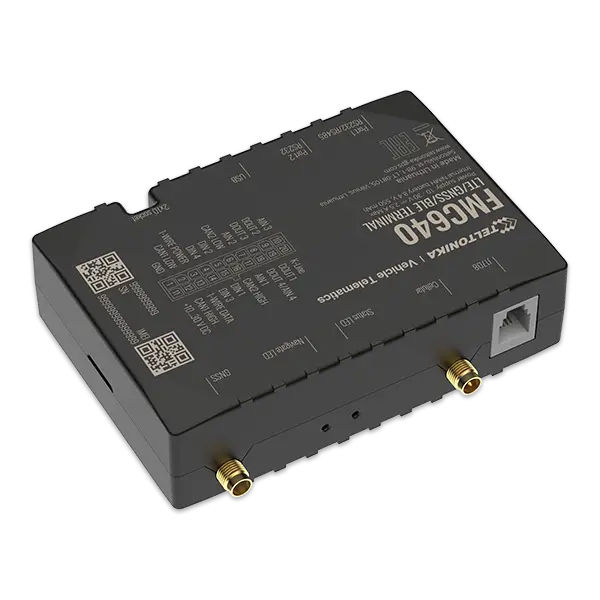

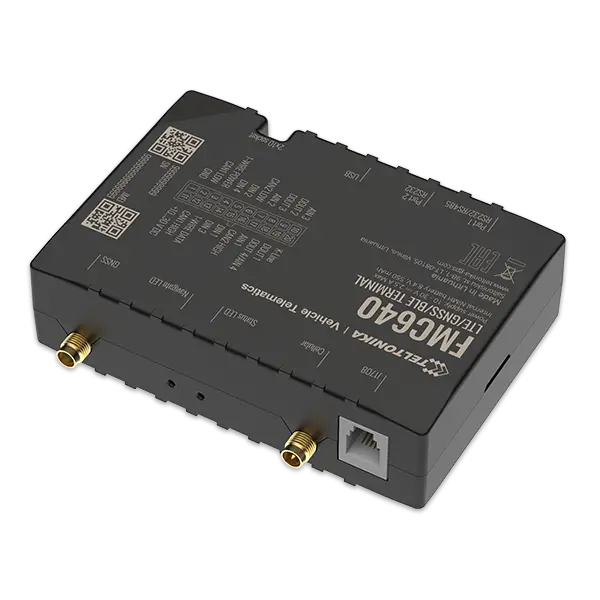

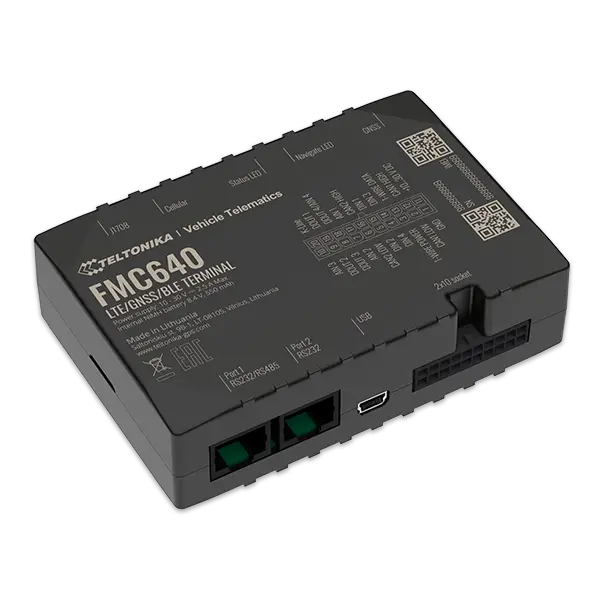

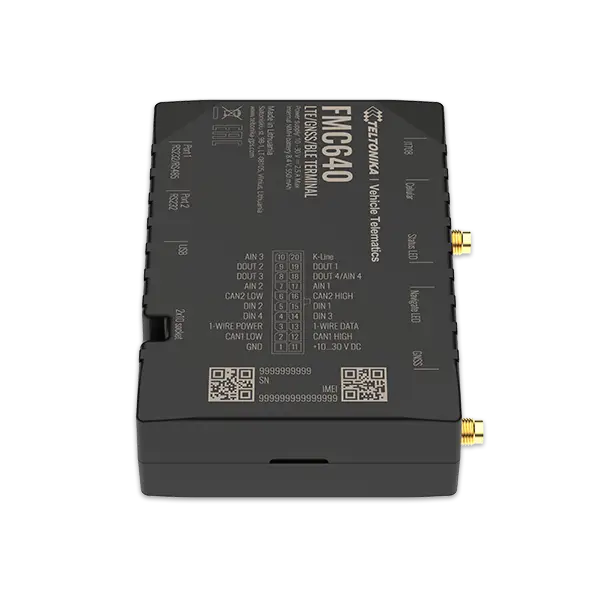

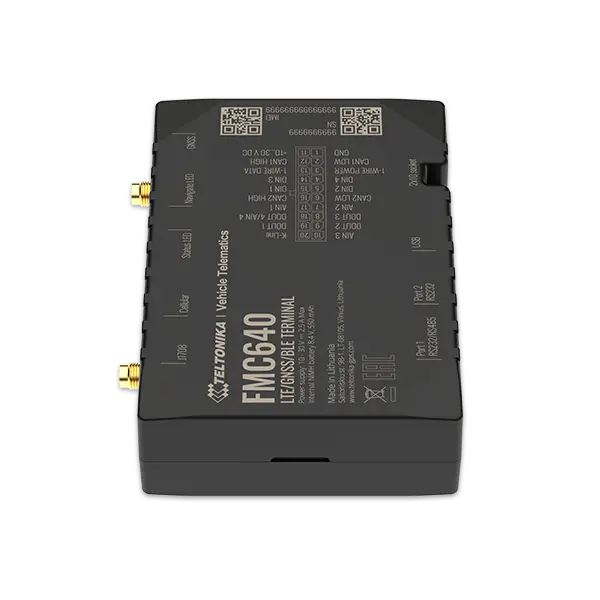

FMC640


Leading GNSS/LTE/3G/GSM Terminal designed for advanced applications with high capacity backup battery and external antennas.





Reliable 4G connection with fallback to 3G and 2G network


CAN data reading from vehicles and specialized transport


Dual SIM – significantly reduce roaming costs


Accurate fuel level and temperature monitoring via LLS sensors


RS232/RS485 serial communication interfaces


Tachograph files and data remote download




1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8







DESCRIPTION & FEATURES




Teltonika FMC640 is a PROFESSIONAL series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. Device equipped with GNSS and LTE modules, external GNSS and LTE antennas.

FMC640 will maximize your fleet efficiency with features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-Line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM.Terminal is suitable for applications like international logistics, refrigerated transport, agriculture, construction & mining, security & emergency services and even more.



Features

MODULE
NameQuectel EG91-EX
TechnologyLTE(CaT1)/ 3G(UMTS/HSPA)/ 2G(GSM/GPRS)/ GNSS
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, QZSS
Protocol compatibleNMEA, GGA, GGL, GSA, GSV, RMC, VTG
ReceiverTracking: 33/99 acquisition channels
Tracking sensitivity-165 dBM
Accuracy< 3 m
Hot start< 1 s
Warm start< 25 s
Cold start< 35 s
CELLULAR
TechnologyLTE Cat 1, UMTS, GSM
2G bandsEG91-EX: GSM: B3/B8
3G bandsEC91-EX: WCDMA: B1/B8
4G bands dedicated for EMEA regionEC91-EX: LTE FDD: B1/B3/B7/B8/B20/B28
Data transferLTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
UMTS: WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
GSM: GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
Data supportSMS (text/data)
POWER
Input voltage range10 - 30 V DC with overvoltage protection
Internal Back-up battery550 mAh Ni-Mh, 8,4 V battery
PHYSICAL SPECIFICATION
Dimensions104,1 x 76,8 x 31,5 mm (L x W x H)
Weight197 g
OPERATING ENVIRONMENT
Operating temperature (without battery)-40 °C to +85 °C
Storage temperature (without battery)-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP41

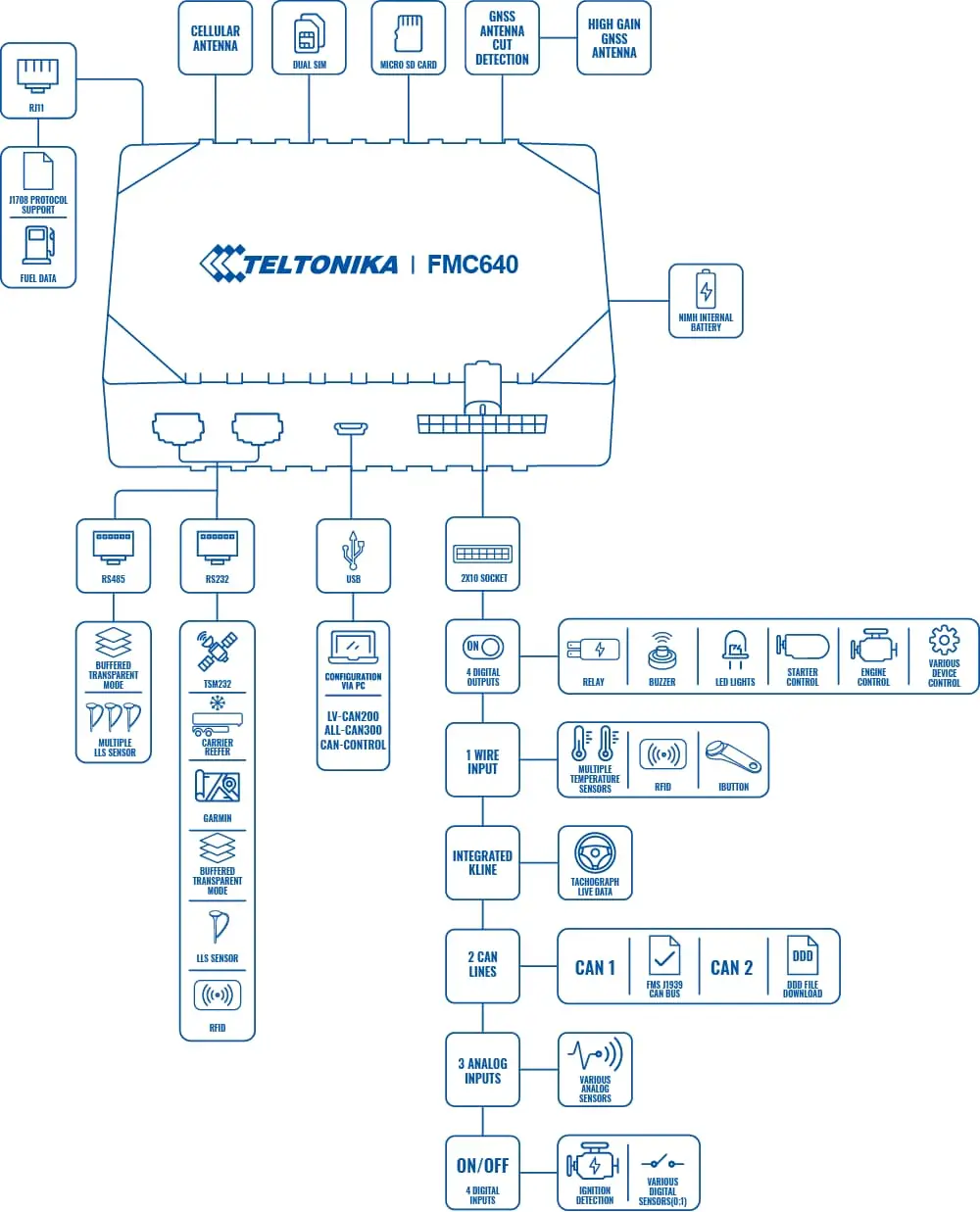

INTERFACE
Digital Inputs4
Digital Outputs4
Analog Inputs4
1-Wire interface1
RS2322
RS4851
CAN j19392
J17081
K-line1
GNSS antennaExternal High Gain
Cellular antennaExternal LTE CAT 1 High Gain
USB2.0 Mini-USB
LED indication2 status LED lights
SIM2x SIM Card (Dual-SIM)
Memory2MB internal flash memory and external Micro SD card up to 32 GB
FEATURES
Movement detectionAccelerometer
ScenariosGreen/Eco Driving, Over Speeding detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification
FunctionalitiesAuto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking
Supported peripheralsGarmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD (TSM232), Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator
SMSConfiguration, Events, DOUT control, Debug
GPRS commandsConfiguration, DOUT control, Debug
Time SynchronizationGPS, NITZ, NTP
Fuel monitoringLLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS, Ultrasonic level sensor
Ignition detectionDigital Input, Accelerometer, External Power Voltage
