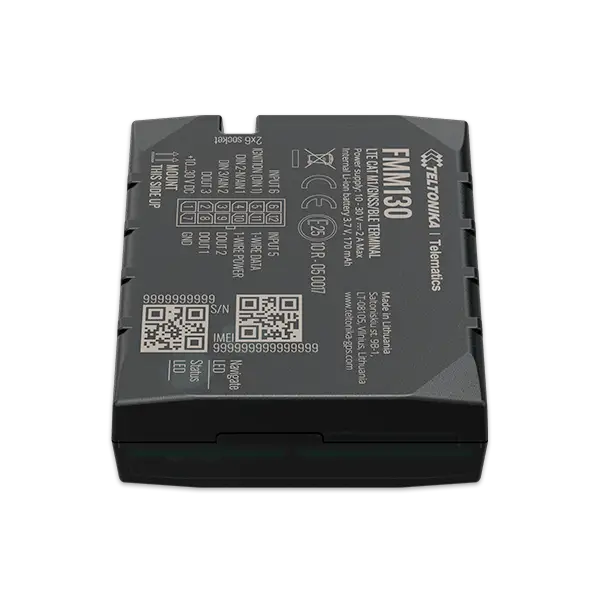

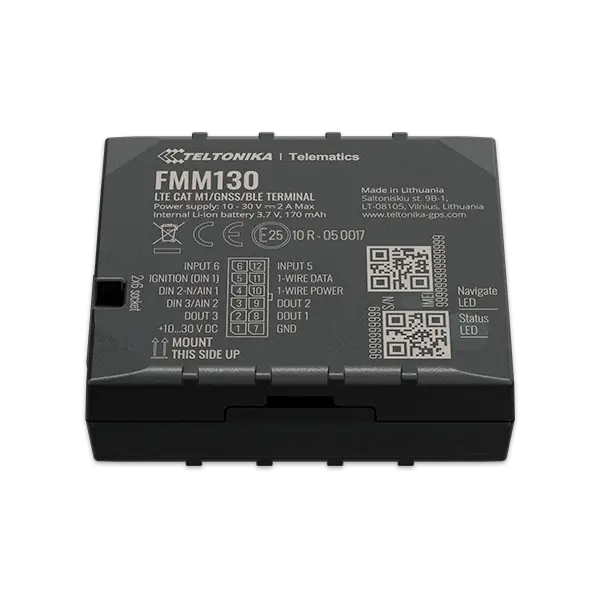

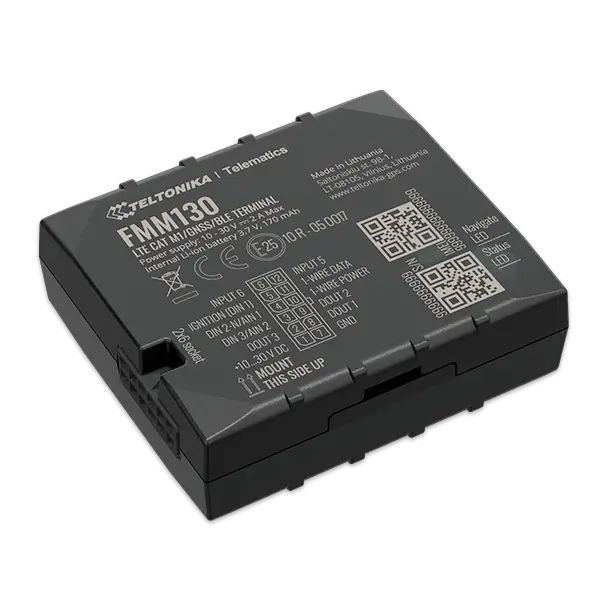

FMM130


Advanced CAT M1/GSM/GNSS/BLE terminal with internal antennas and backup battery.





Device support both LTE M1 and NB IoT connectivity


CAN data reading from vehicles and specialized transport


Configurable DIN/AIN for flexible remote monitoring and control


Allows device to work without external power source


Negative input will allow easier installation of accessories


Impulse inputs for fuel flow meters data reading




1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8







DESCRIPTION & FEATURES




FMM130 is small and professional real-time tracking terminal with GNSS and LTE CAT-M1/NB-IoT/GSM connectivity and backup battery. Device equipped with GNSS/Bluetooth and LTE CAT-M1/NB-IoT modules with fallback to 2G network, internal GNSS and LTE antennas, configurable digital, analogue inputs and digital outputs, negative input, impulse inputs. It is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on.



Features

MODULE
NameQuectel BG96, Teltonika TM2500
TechnologyLTE CAT M1/ NB-IoT/ GSM/ GPRS/ GNSS/ BLUETOOTH
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
ReceiverTracking: 33
Tracking sensitivity-165 dBM
Accuracy< 3 m
Hot start< 1 s
Warm start< 25 s
Cold start< 35 s
CELLULAR
TechnologyLTE CAT M1/ NB-IoT/GSM
2G bandsB2/B3/B5/B8
4G bandsLTE FDD: B1/B2/B3/B4/ B5/B8/B12/B13/B18/ B19/B20/B28
LTE TDD: B39 (for CAT M1 only)
Data transferLTE: Max. 375Kbps (DL)/Max.375Kbps (UL)
GPRS: Max. 85.6Kbps (DL)/Max. 85.6Kbps (UL)
Data supportSMS (text/data)
POWER
Input voltage range10 - 30 V DC with overvoltage protection
Back-up battery170 mAh Li-Ion battery 3.7 V (0.63 Wh)
BLUETOOTH
Specification4.0 + LE
Supported peripheralsTemperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support

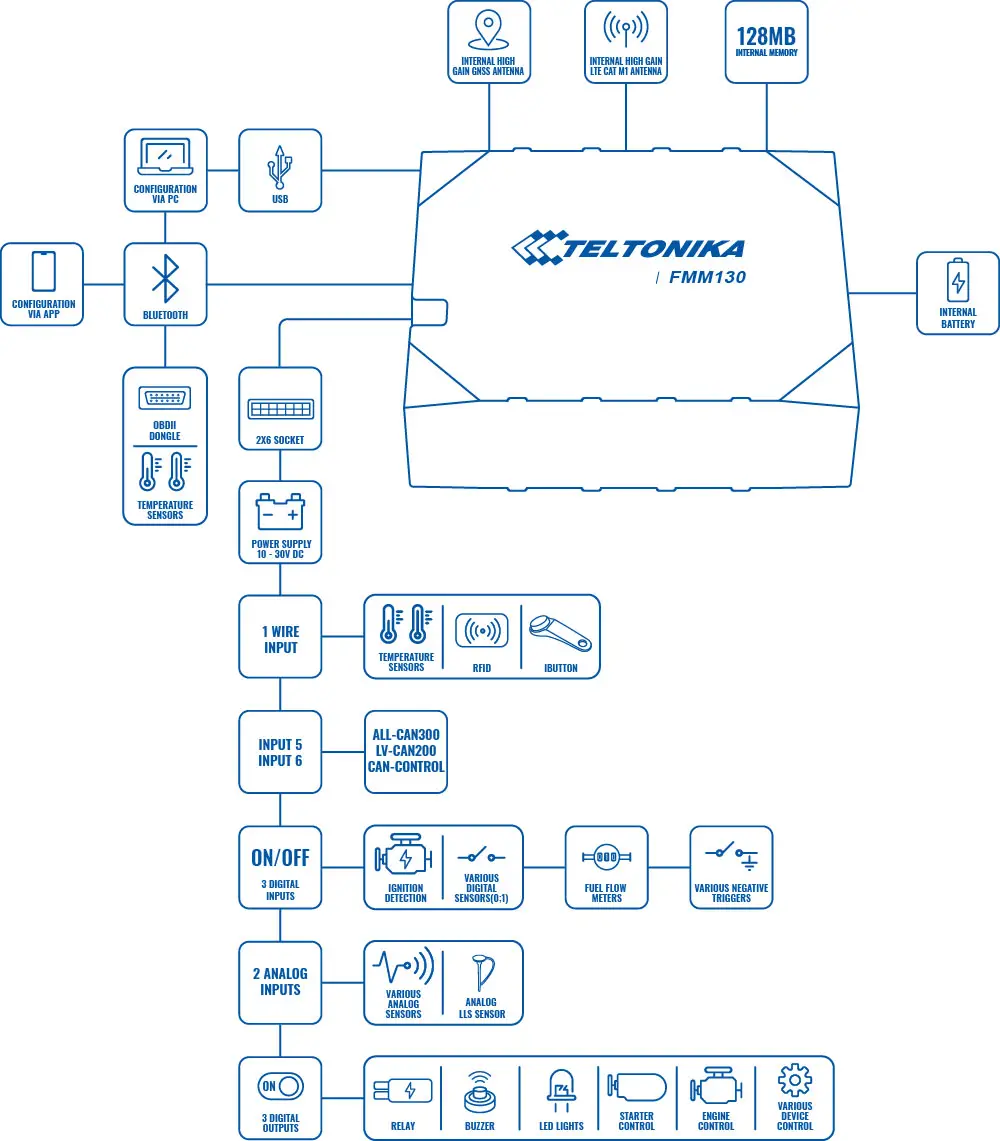

INTERFACE
Digital Inputs3
Negative Inputs1 (Digital Input 2)
Impulse Inputs2 (Digital Input 1, Digital Input 2)
Digital Outputs3
Analog Inputs2
CAN Adapter Inputs1
1-Wire1
GNSS antennaInternal High Gain
Cellular antennaInternal High Gain
USB2.0 Micro-USB
LED indication2 status LED lights
SIMMicro-SIM + eSIM
Memory128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions65 x 56.6 x 20.6 mm (L x W x H)
Weight55 g
OPERATING ENVIRONMENT
Operating temperature
(without battery)
-40 °C to +85 °C
Storage temperature
(without battery)
-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP41
Battery charge temperature0 °C to +45 °C
Battery discharge temperature-20 °C to +60 °C
Battery storage temperature-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
FEATURES
SensorsAccelerometer
ScenariosGreen Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMSConfiguration, Events, DOUT control, Debug
GPRS commandsConfiguration, DOUT control, Debug
Time SynchronizationGNSS, NITZ, NTP
Fuel monitoringLLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detectionDigital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
