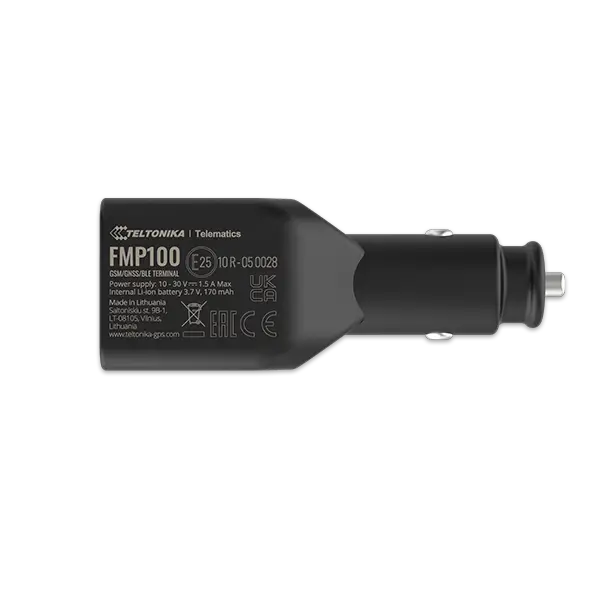

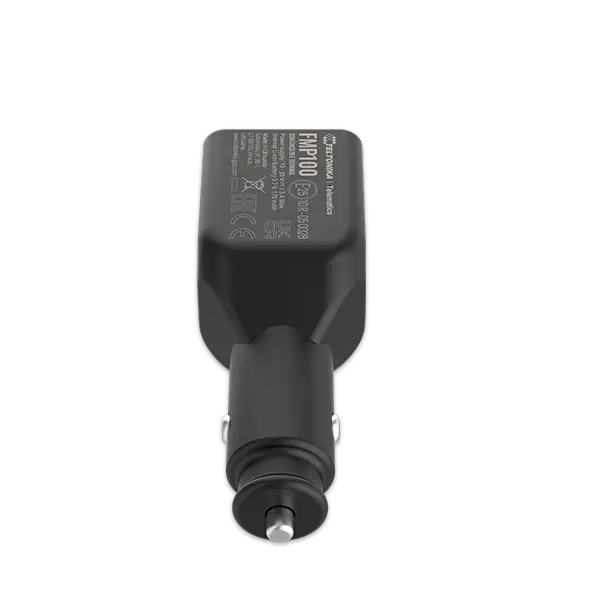

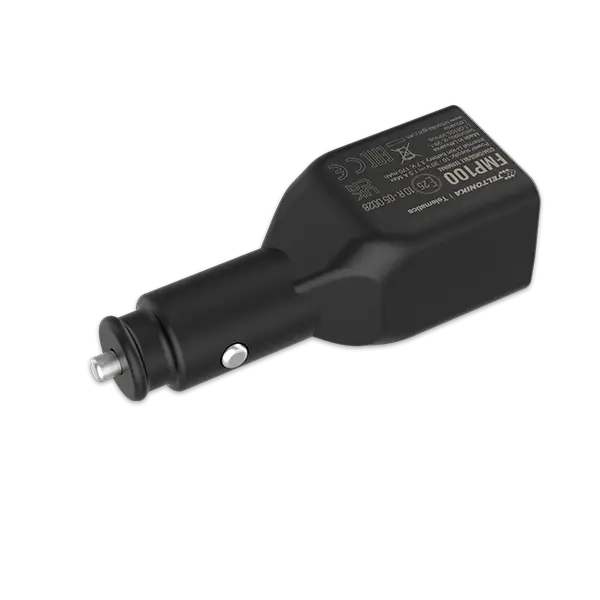

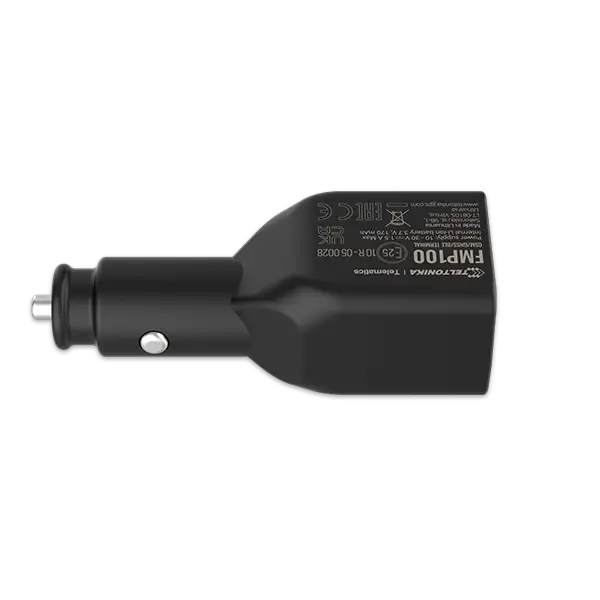

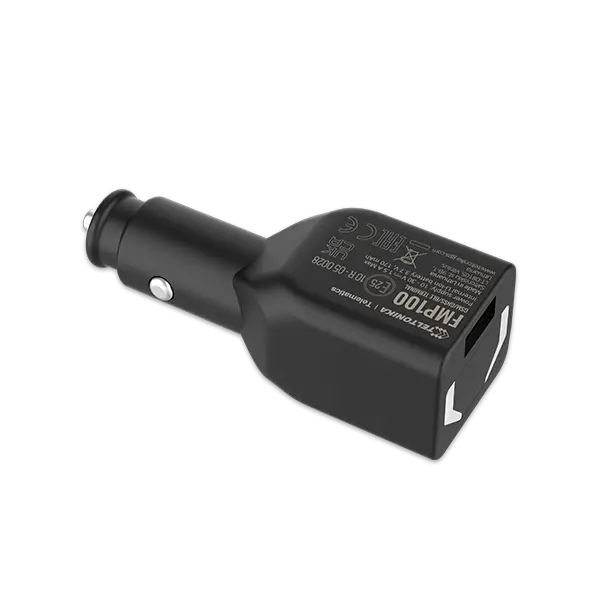

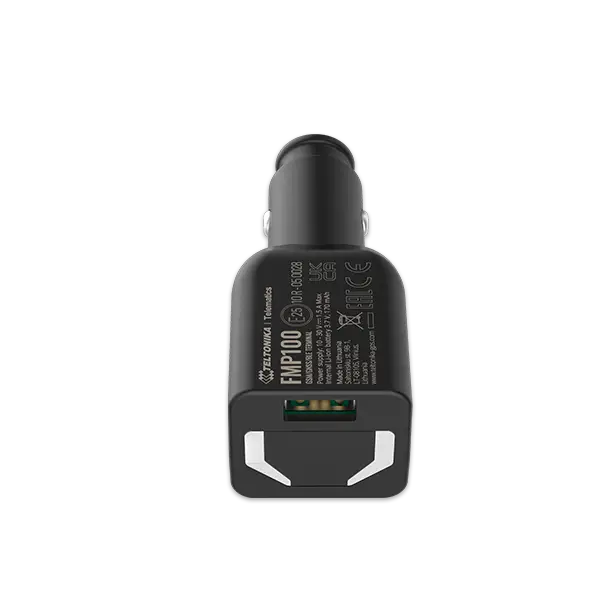

FMP100


Plug and Play tracker with GNSS, GSM and Bluetooth connectivity and cigarette lighter power connector for easy installation!

Bluetooth for external devices and Low Energy sensors


Crash detection according to accelerometer data


Button for alarm event generation or Private mode usage


RGB LED and buzzer for user notifications according to selected scenario




1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8







DESCRIPTION & FEATURES




FMP100 is Plug and Play tracker with GNSS, GSM and Bluetooth connectivity and cigarette lighter power connector for easy installation. It is ideal for light vehicle tracking in applications like courier delivery service, car rental & leasing, insurance telematics and many other applications, where simple integration is a must. Bluetooth 4.0 LE allows this small device to have capabilities of an advanced tracker: various data reading from Bluetooth Low Energy sensors, hands-free headset usage, firmware and configuration update.



Features

MODULE
NameTeltonika TM2500
TechnologyGSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver33 channel
Tracking sensitivity-165 dBM
Accuracy< 2.5m CEP
Hot start< 1 s
Warm start< 25 s
Cold start< 35 s
CELLULAR
TechnologyGSM
2G bandsQuad-band 850 / 900 / 1800 / 1900 MHz
Data transferGPRS Multi-Slot Class 12(up to 240 kbps)
Data supportSMS (text/data)
POWER
Supply voltage range10 - 30 V DC with overvoltage protection
Back-up battery170 mAh Li-Ion battery 3.7 V (0.63 Wh)
BLUETOOTH
Specification4.0 + LE
Supported peripheralsTemperature and Humidity sensor, Hands-free headset, Inateck Barcode Scanner, Universal BLE sensors support

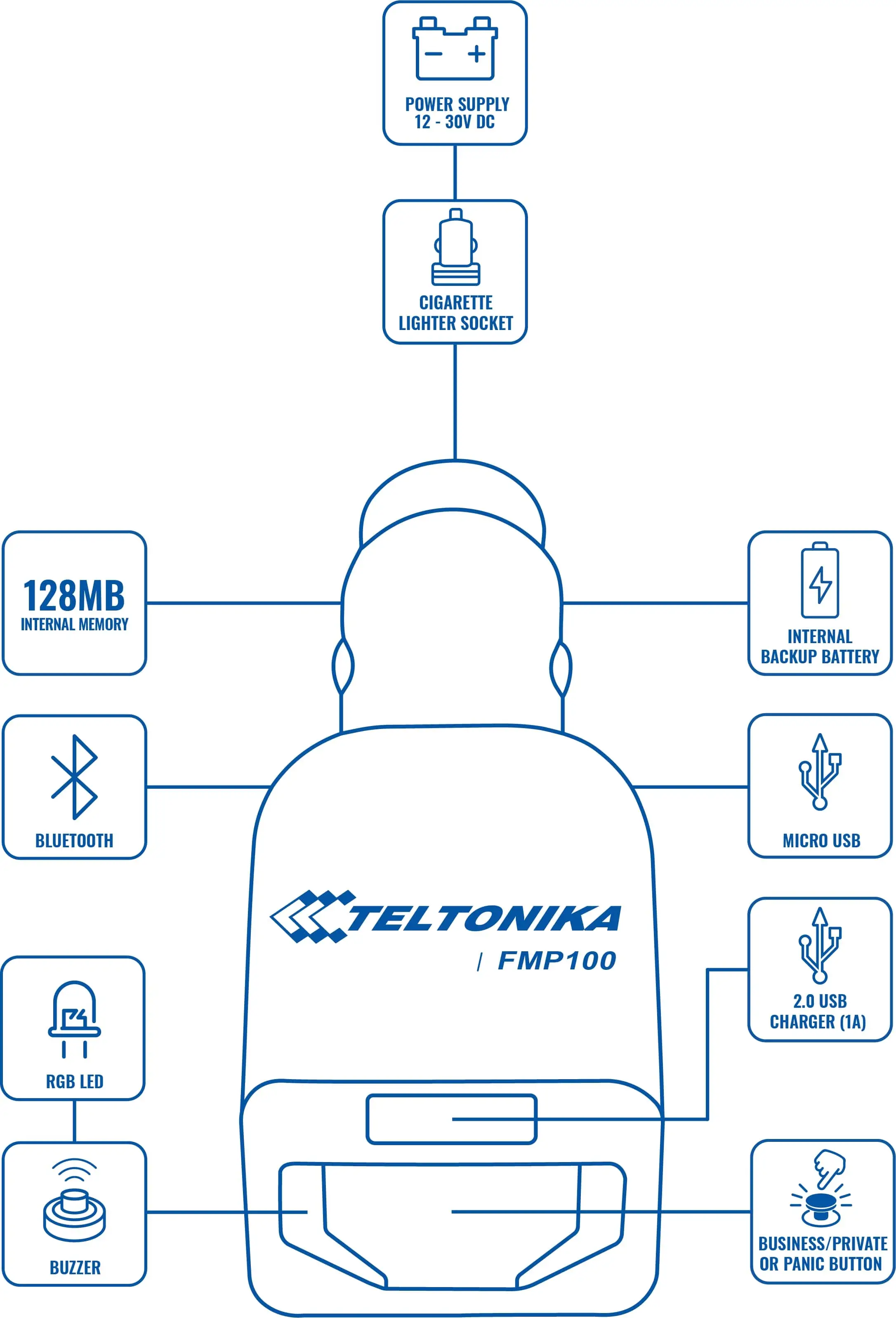

INTERFACE
ConnectionCigarette lighter socket
GNSS antennaInternal High Gain
GSM antennaInternal GSM High Gain
USB1 x USB 2.0 Micro-USB for configuration
1 x USB type A for external device charging (5V 1A)
LED indicationRGB LED
SIMNano-SIM
Memory128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions96,7 x 33,4 x 27,5 mm (L x W x H)
OPERATING ENVIRONMENT
Operating temperature (without battery)-40 °C to +85 °C
Storage temperature (without battery)-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Battery charge temperature0 °C to +45 °C
Battery discharge temperature-20 °C to +60 °C
Battery storage temperature-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
FEATURES
SensorsAccelerometer
ScenariosGreen Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMSConfiguration, Events, Debug
GPRS commandsConfiguration, Debug
Time SynchronizationGPS, NITZ, NTP
Ignition detectionAccelerometer, External Power Voltage
