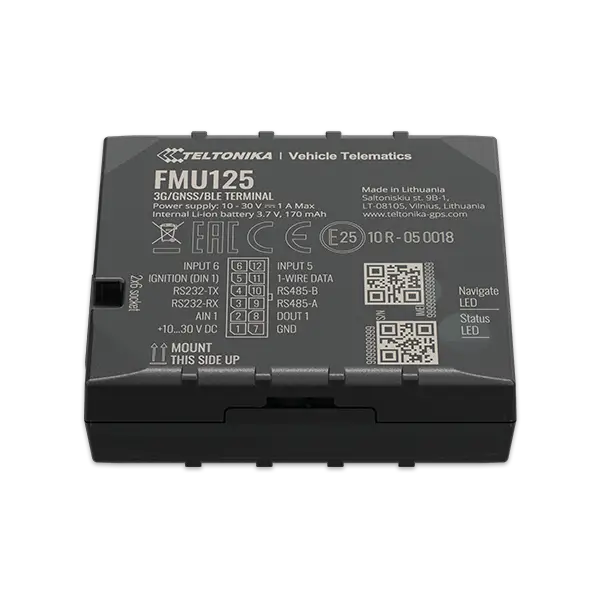

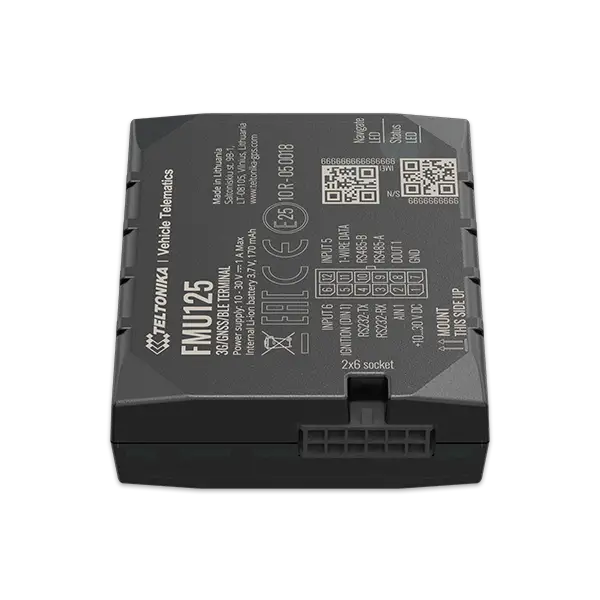

FMU125


Advanced 3G terminal with GNSS and 3G/GSM connectivity, RS485/RS232 interfaces and backup battery.





Worldwide 3G network coverage


Bluetooth for external devices and Low Energy sensors


1-Wire® interface to monitor temperature data and RFID/iButton tags


RS232/RS485 serial communication interfaces


Double network reliability and multiple network selection


CAN data reading from vehicles and specialized transport




1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8







DESCRIPTION & FEATURES




FMU125 is small and professional real-time tracking terminal with GNSS and 3G/GSM connectivity and backup battery. Device equipped with GNSS/Bluetooth and 3G modules, internal GNSS, 3G antennas.

FMU125 features RS485/RS232 data interface, which gives ability to connect various third-party external devices. It is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on.



Features

MODULE
NameQuectel UG96, Teltonika TM2500
Technology3G(UMTS/HSPA)/ 2G(GSM/GPRS)/ GNSS/ BLUETOOTH
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, QZSS
Protocol compatibleNMEA, GGA, GGL, GSA, GSV, RMC, VTG
ReceiverTracking: 33/99 acquisition channels
Tracking sensitivity-165 dBM
Accuracy< 3 m
Hot start< 1 s
Warm start< 25 s
Cold start< 35 s
CELLULAR
TechnologyUMTS/HSPA
2G bandsUG96: B5/B8/B3/B2
3G bandsUG96: B6/B5/B8/B2/B1
Data transferUG96:HSUPA: Max. 5.76Mbps
UMTS: Max. 384Kbps (DL)/Max.384Kbps (UL)
GPRS: Max. 107Kbps (DL)/Max.85.6Kbps (UL)
Data supportSMS (text/data)
POWER
Input voltage range10 - 30 V DC with overvoltage protection
Internal Back-up battery170 mAh Li-Ion, 3.7 V battery (0.63 Wh)
BLUETOOTH
Specification4.0 + LE
Supported peripheralsTemperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions65 x 56,6 x 20,6 mm (L x W x H)
Weight55 g
OPERATING ENVIRONMENT
Operating temperature (without battery)-40 °C to +85 °C
Storage temperature (without battery)-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP41
Battery charge temperature0 °C to +45 °C
Battery discharge temperature-20 °C to +60 °C
Battery storage temperature-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months

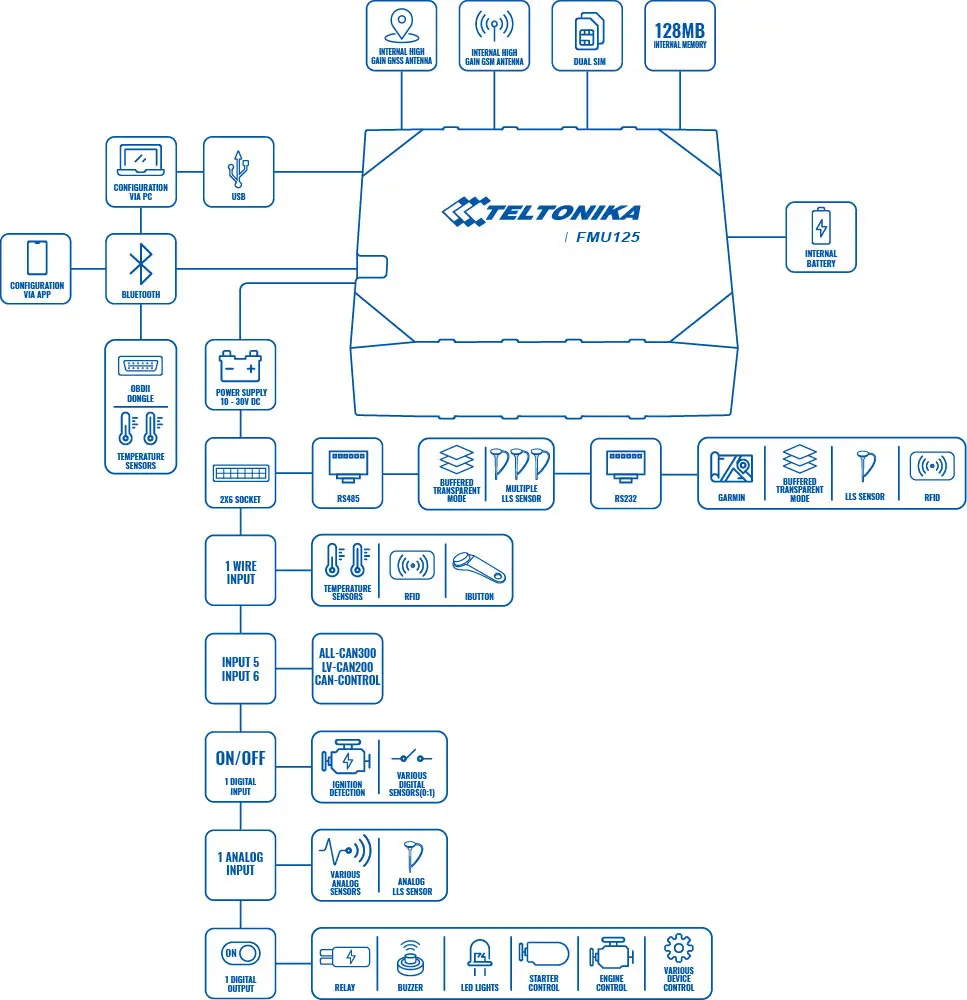

INTERFACE
Digital Inputs1
Digital Outputs1
Analog Inputs1
CAN Adapter inputs1
1-Wire1
RS2321
RS4851
GNSS antennaInternal High Gain
Cellular antennaInternal High Gain
USB2.0 Micro-USB
LED indication2 status LED lights
SIM2x SIM Card (Dual-SIM)
Memory128MB internal flash memory
FEATURES
SensorsAccelerometer
ScenariosGreen Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMSConfiguration, Events, DOUT control, Debug
GPRS commandsConfiguration, DOUT control, Debug
Time SynchronizationGNSS, NITZ, NTP
Fuel monitoringLLS (Analog), Digital LLS (RS232), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detectionDigital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
RS232 ModesLog Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary
RS485 ModesLog Mode, NMEA, LLS, TCP ASCII/Binary
