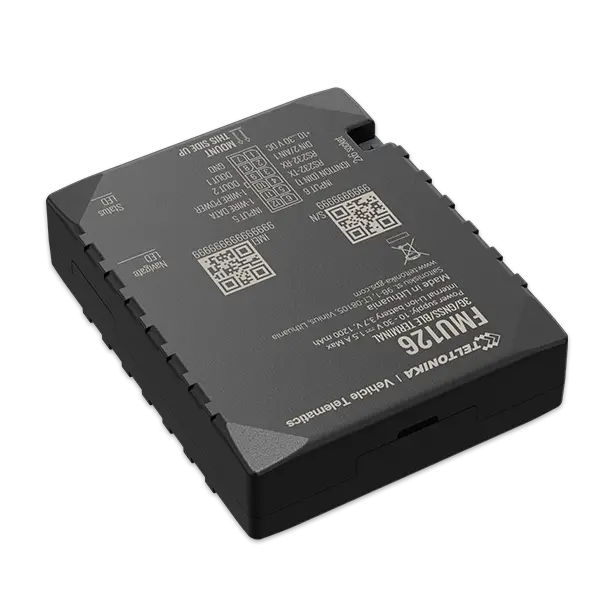

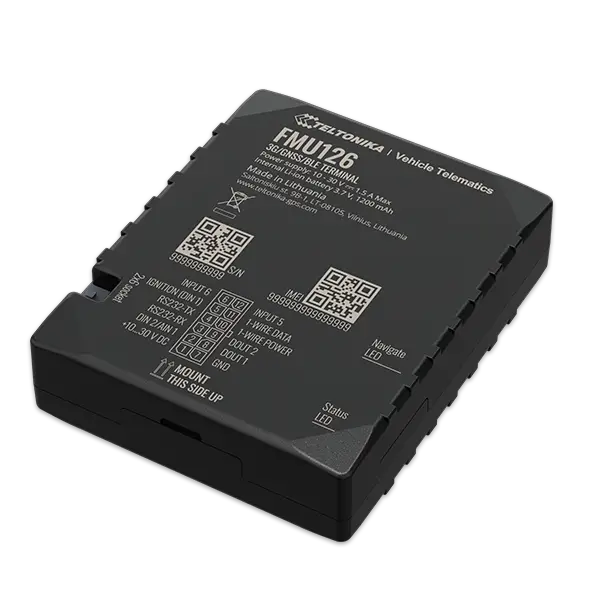

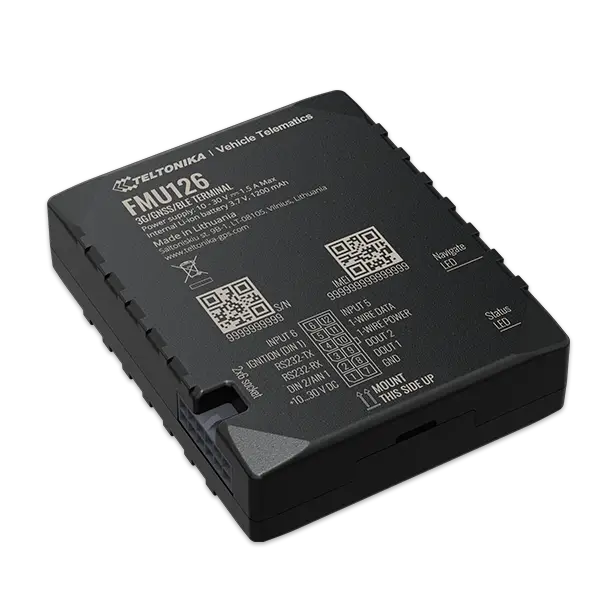

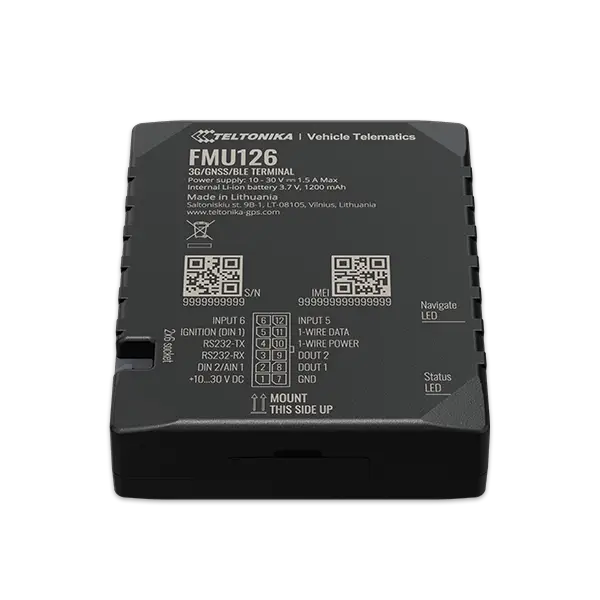

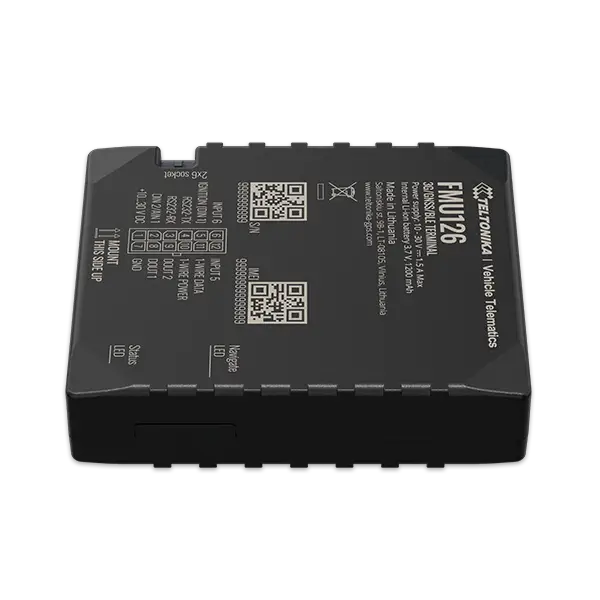

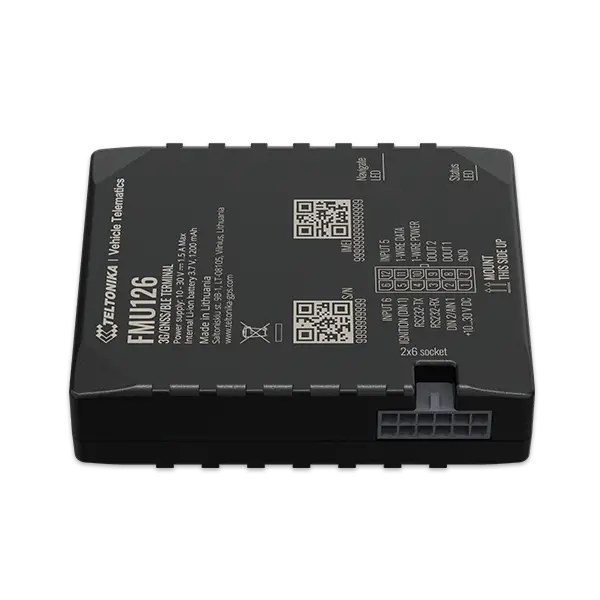

Newly introduced FMU126 is an advanced real-time tracking terminal with 3G network coverage and fallback to 2G. Device equipped with GNSS/Bluetooth and 3G modules, internal GNSS and internal 3G antennas. Teltonika designed a tracker to fulfil the requirements of Department of Land Transport (DLT) and deliver additional value for GPS telematics solution providers by high-end features:

Device is designed with RS232 interface for magnetic card reader and various third party external devices.
Additional +5V output allows you to save precious time of integration.
Buzzer on PCB will save cost of installation.
BLE sensors and beacons – expands business opportunities dramatically
More than 6 hours long life on internal battery collecting records every second
CAN adapters support to capture CAN data from any kind of transport

it’s just a small part of existing functionality but it allows to make FMU126 even better.

FMU126 is a perfect choice to meet compliance requirements and deliver more value for the Thailand market.

Features

MODULE
Name	Quectel UC15-T, Teltonika TM2500
Technology	3G(UMTS/HSPA)/ 2G(GSM/GPRS)/ GNSS/BLUETOOTH

GNSS
GNSS	GPS, GLONASS, GALILEO, BEIDOU, QZSS
Protocol compatible	NMEA, GGA, GGL, GSA, GSV, RMC, VTG
Receiver	Tracking: 33/99 acquisition channels
Tracking sensitivity	-110 dBM
Accuracy	< 3 m
Hot start	< 1 s
Warm start	< 25 s
Cold start	< 35 s

CELLULAR
Technology	UMTS/HSPA
2G bands	UC15-T: B5/B8/B3/B2
3G bands	UC15-T: B5/B1
Data transfer	UC15:HSDPA: Max. 3.6Mbps (DL) UMTS: Max. 384Kbps (DL)/Max.384Kbps (UL) GPRS: Max. 85.6Kbps (DL)/Max. 85.6Kbps (UL) UG96:HSUPA: Max. 5.76Mbps UMTS: Max. 384Kbps (DL)/Max.384Kbps (UL) GPRS: Max. 107Kbps (DL)/Max.85.6Kbps (UL)
Data support	SMS (text/data)

POWER
Input voltage range	10 - 30 V DC with overvoltage protection
Internal Back-up battery	1200 mAh Li-Ion battery 3.7 V (4.44 Wh)

BLUETOOTH
Specification	4.0 + LE
Supported peripherals	Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support

PHYSICAL SPECIFICATION
Dimensions	65 x 56,6 x 20,6 mm (L x W x H)
Weight	55 g

OPERATING ENVIRONMENT
Operating temperature (without battery)	-40 °C to +85 °C
Storage temperature (without battery)	-40 °C to +85 °C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP41
Battery charge temperature	0 °C to +45 °C
Battery discharge temperature	-20 °C to +60 °C
Battery storage temperature	-20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months

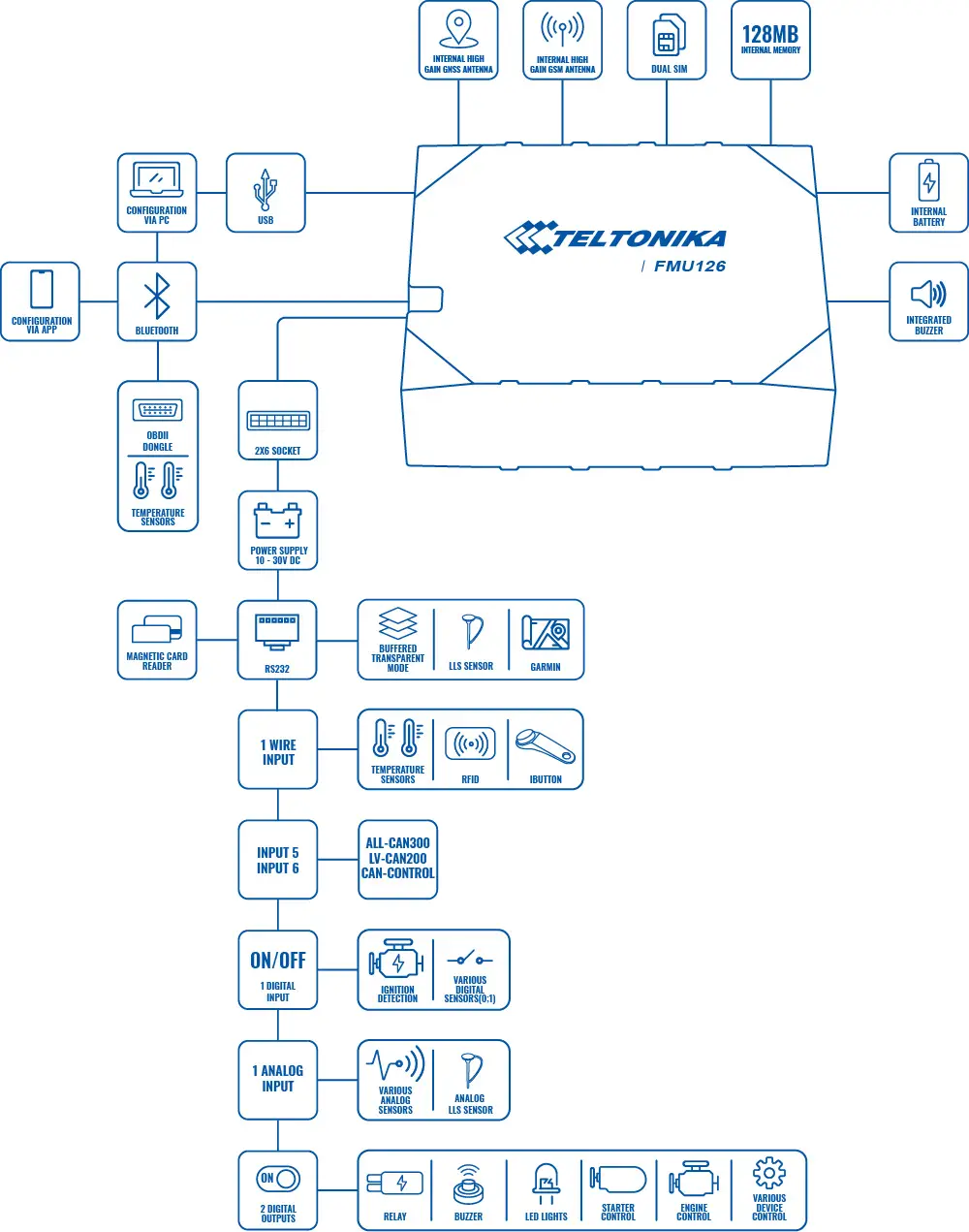

INTERFACE
Digital Inputs	2
Digital Outputs	2
Analog Inputs	1
CAN Adapter inputs	1
1-Wire	1
RS232	1
GNSS antenna	Internal High Gain
Cellular antenna	Internal High Gain
USB	2.0 Micro-USB
LED indication	2 status LED lights
SIM	2x SIM Card (Dual-SIM)
Memory	128MB internal flash memory

FEATURES
Sensors	Accelerometer
Scenarios	Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes	GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update	FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS	Configuration, Events, DOUT control, Debug
GPRS commands	Configuration, DOUT control, Debug
Time Synchronization	GNSS, NITZ, NTP
Fuel monitoring	LLS (Analog), Digital LLS (RS232), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection	Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
RS232 Modes	Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary, Magnetic card reader
