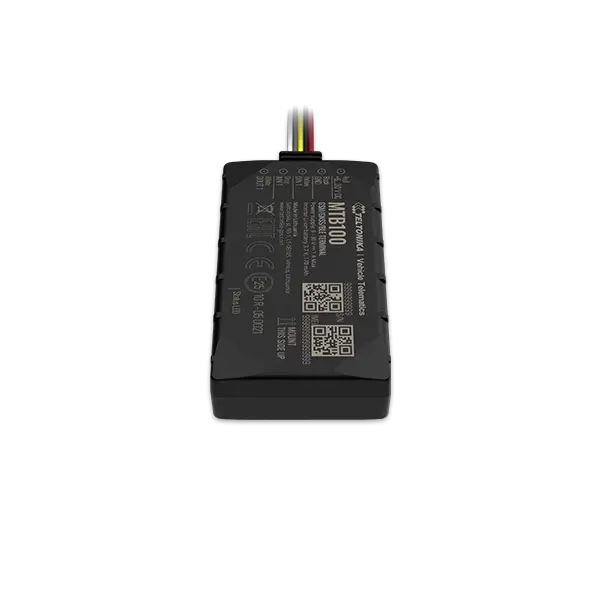

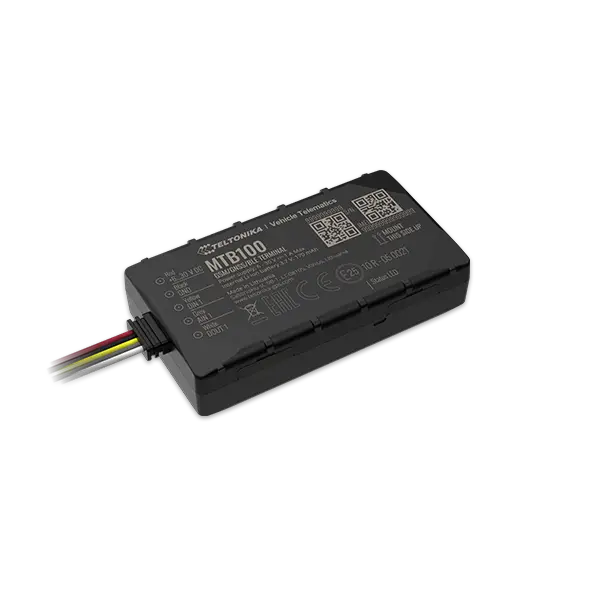

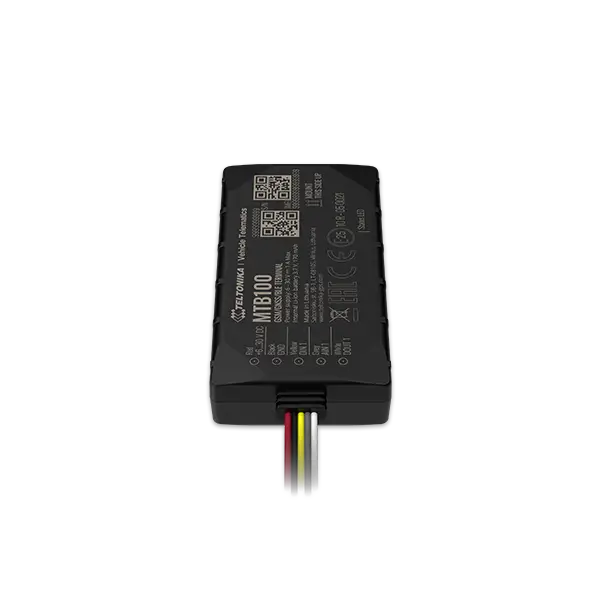

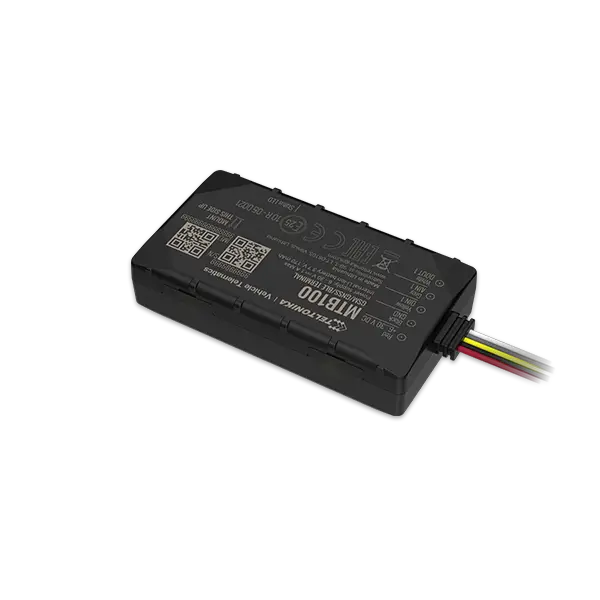

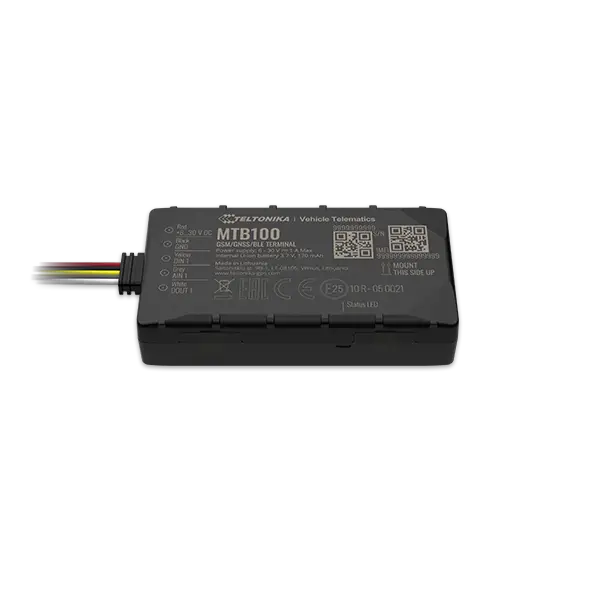

MTB100


Smart motorbike tracker with Bluetooth and internal backup battery

Bluetooth for external devices and Low Energy sensors


Allows device to work without external power source


External voltage range


Multiple Inputs/Outputs for remote monitoring and control




1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8







DESCRIPTION & FEATURES




Teltonika MTB100 is smart tracker with Bluetooth connectivity, internal High Gain GNSS and GSM antennas and integrated backup battery. MTB100 is designed for light vehicles and motorbike tracking in applications like rental cars, recovery of stolen cars, public safety services, delivery transport, taxi and much more. Input/output extend device usage scenarios. Digital input can be used for ignition, door or alarm button status monitoring. Vehicle remote immobilizing may be achieved using MTB100 digital output.



Features

MODULE
NameTeltonika TM2500
TechnologyGSM/GPRS/ GNSS/BLUETOOTH
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
ReceiverTracking: 33
Tracking sensitivity-165 dBM
Accuracy< 3 m
Hot start< 1 s
Warm start< 25 s
Cold start< 35 s*
CELLULAR
TechnologyGSM
2G bandsQuad-band 850 / 900 / 1800 / 1900 MHz
Data transferGPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data supportSMS (text/data)
POWER
Input voltage range6 - 30 V DC with overvoltage protection
Internal Back-up battery170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Power consumptionAt 12V < 2 mA (Ultra Deep Sleep)
At 12V < 4 mA (Deep Sleep)
At 12V < 5 mA (Online Sleep)
At 12V < 6 mA (GPS Sleep)
At 12V < 25 mA (nominal)
BLUETOOTH
Specification4.0 + LE
Supported peripheralsTemperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions78.4 x 42.6 x 21 mm (L x W x H)
Weight69 g
OPERATING ENVIRONMENT
Operating temperature (without battery)-40 °C to +85 °C
Storage temperature (without battery)-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP54
Battery charge temperature0 °C to +45 °C
Battery discharge temperature-20 °C to +60 °C
Battery storage temperature-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months

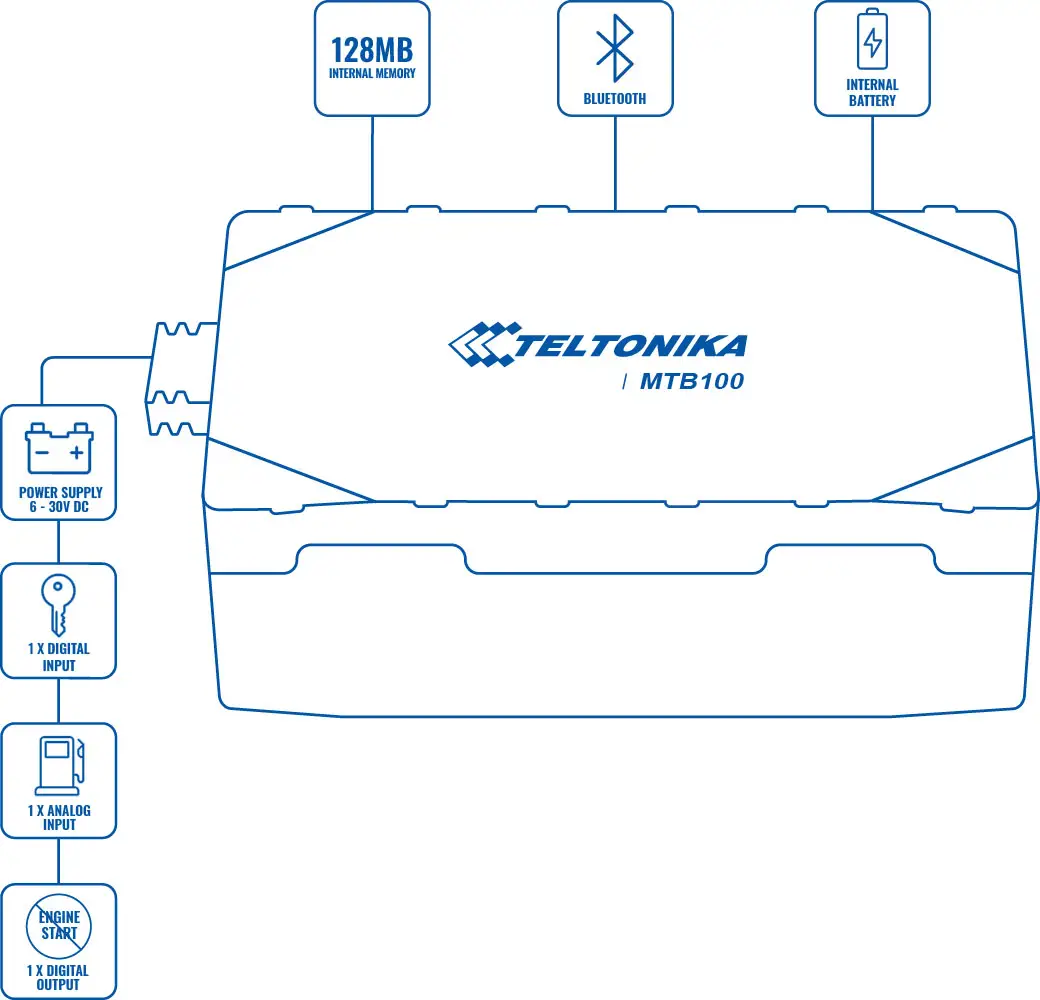

INTERFACE
Digital Inputs1
Digital Outputs1
Analog Inputs1
GNSS antennaInternal High Gain
Cellular antennaInternal High Gain
USB2.0 Micro-USB
LED indication1 status LED light
SIMMicro-SIM
Memory128MB internal flash memory
FEATURES
SensorsAccelerometer
ScenariosGreen Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMSConfiguration, Events, DOUT control, Debug
GPRS commandsConfiguration, DOUT control, Debug
Time SynchronizationGNSS, NITZ, NTP
Fuel monitoringLLS (Analog), OBDII dongle
Ignition detectionDigital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
